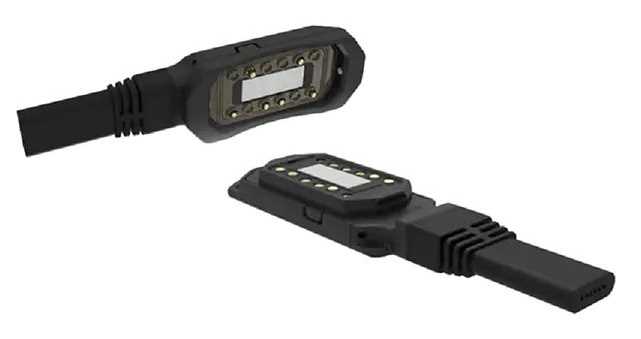

Amphenol Pcd Gladiator Magnetic Self-Aligning Connectors (Black)


Brand:

Specifications

   Product details:
  • No Warranty
  • Brand: Amphenol
  • Color: Black
   Features:
  • Magnetic mating orients and aligns connectors for fast, no-look mating
  • Factory adjustable engage/disengage forces to meet user-specific requirements
  • Spring pins (spring probes) maintain contact through shock and vibration
  • Can be supplied cabled (flat or round) or self-terminated
  • Fluorosilicone silicone gasket interfacial seal for sealing individual contacts and the plug to the receptacle
  • Supports USB 2.0 data with 90O impedance
  • Power and ground pogo pins designed for 5A continuous current
  • First-mate, last-break, pogo contact available for ground contacts
   Specifications:
  • 5A continuous current rating
  • 120VDC dielectric withstanding voltage
  • 5000MO insulation resistance
  • <4mO shell-to-shell resistance
  • >5000 cycle mating durability
  • 3lbs to 5lbs unmate force
  • IP68 sealing at 2m for 2hr
  • Operating Temperature Range: -50°C to +100°C
  • 95% humidity per MIL-STD-810G, Method 507, Procedure I, Cycle B-1
  • Mechanical vibration resistant per MIL-STD-883 Method 2007.3, Test Condition A
  • 96hrs salt spray resistance
  • CBRN allows for NBC decontamination

Features

Brand:
Amphenol Pcd
Color:
Black
Conditions:
New
Warranty:
No Warranty
