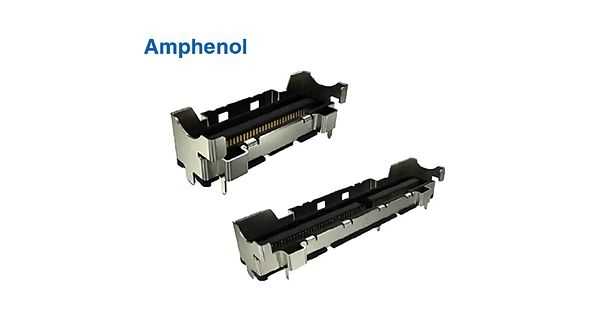

Amphenol Commercial Extreme Port G99 Swift Connectors


Brand:

Specifications

   Product details:
  • 1 Year Warranty
  • Brand: Amphenol
   FEATURES
  • Low profile connector saves space
  • 0.60mm pitch, 8X, and 16X configurations
  • Complete interconnecting solution for different applications
  • With 85O impedance and support PCIe® Gen 5 NRZ 32GT/s, UPI2.0 24GT/s, and SAS4.0 24Gb/s per lane
  • Performance targeted for next-gen PCIe® Gen 5
  • Supports internal I/O applications
  • Receptacle mates pluggable modules
  • Small form factor
  • High data rate
  • Low profile packaging
  • Supports desired high-speed design
  • Mating height (connector+cable plug) = 8.38mm
  • Designed for unshielded, internal I/O connectors
  • Compliant with PCIe® Gen 5 Standard, Intel UPI 2.0, and T10/serial attached SCSI (SAS-4)
  • Meets PCIe® Gen 5 NRZ 32G specification
  • Meets next-generation industry standards
  • Resonance dampening feature
  • Supports blade and mainstream server designs
  • Supports many assembly options
  • Meets environmental, health, and safety requirements
   SPECIFICATIONS
  • Mechanical performance:
  • 0.5N maximum/per pin mating force
  • 15u”Au:100 cycles and 30u”Au:250 cycles durability
  • 50N minimum latch retention force
  • 0.5N maximum/per pin insertion force
  • 0.04N minimum/per pin withdrawal force
  • 30V DC per contact maximum voltage rating
  • 0.5A per contact maximum current rating
  • 85O ± 10O differential impedance
  • -40°C to 85°C operating temperature range
  • UL 94V-0 rating
  • RoHS and halogen-free

Features

Brand:
Amphenol
Warranty:
1 Year
