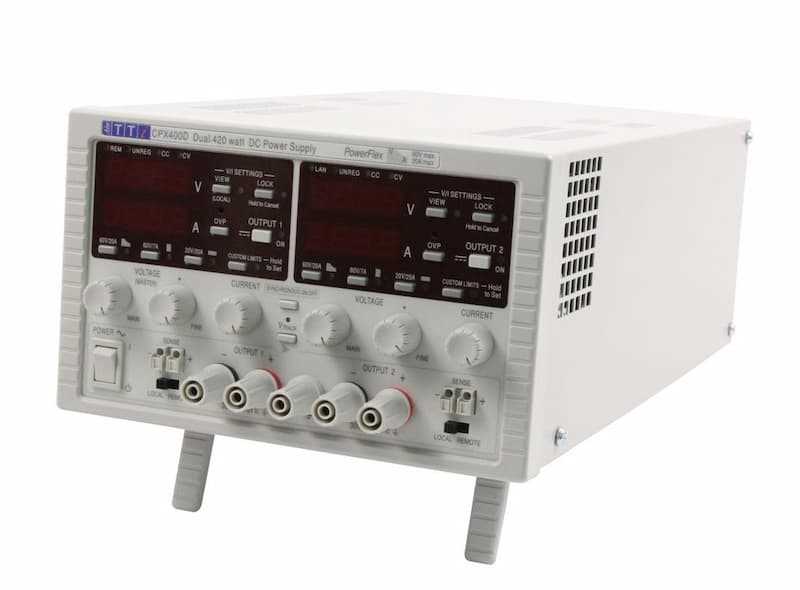

Aim-TTi CPX400D Bench Power Supply


Brand:

Specifications

      Product details:
  • 100% brand new from the factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy Exchange)
  • 1 Year Warranty
  • Brand: Aim-TTi
  • Model: CPX400D
     Specification:
  • Output Voltage: 0 - 60V
  • Bench Power Supply Type: Autoranging Power Supply
  • Output Current: 0 - 20A
  • Number of Outputs: 2
  • Series: CPX
  • Type: Digital
  • Power Rating: 840W
  • Supply Voltage: 110 - 240V ac
  • Number of Displays: 4
  • Input Connector: IEC 320
  • Output Connector: Binding Post Terminal
  • Minimum Temperature: +5°C
  • Maximum Temperature: +40°C
  • Digital/Analogue: Digital
       Features:
  • Dual isolated outputs, independent or tracking
  • Power Flex regulation with 840 watts of total power
  • Up to 60V and up to 20A within a 420W power envelope on each output
  • Isolated tracking provides up to 120V in series or up to 40A in parallel
  • True analogue controls with digital enhancements
  • S-Lock function locks voltage and current settings at the touch of a button
  • Range control buttons offers fixed range or Power Flex operation
  • Variable over-voltage protection (OVP) and over-current protection (OCP)
  • Synchronous or independent switching of the outputs
  • Compact 3U half-rack casing for bench or rack use
  • Duplicate output and sense terminals at rear (CPX400DP only)
  • Full range of bus interfaces, RS232, USB, LAN (LXI compliant) and GPIB (CPX400DP only)

Features

Brand:
RS PRO
Conditions:
New
Warranty:
1Year
