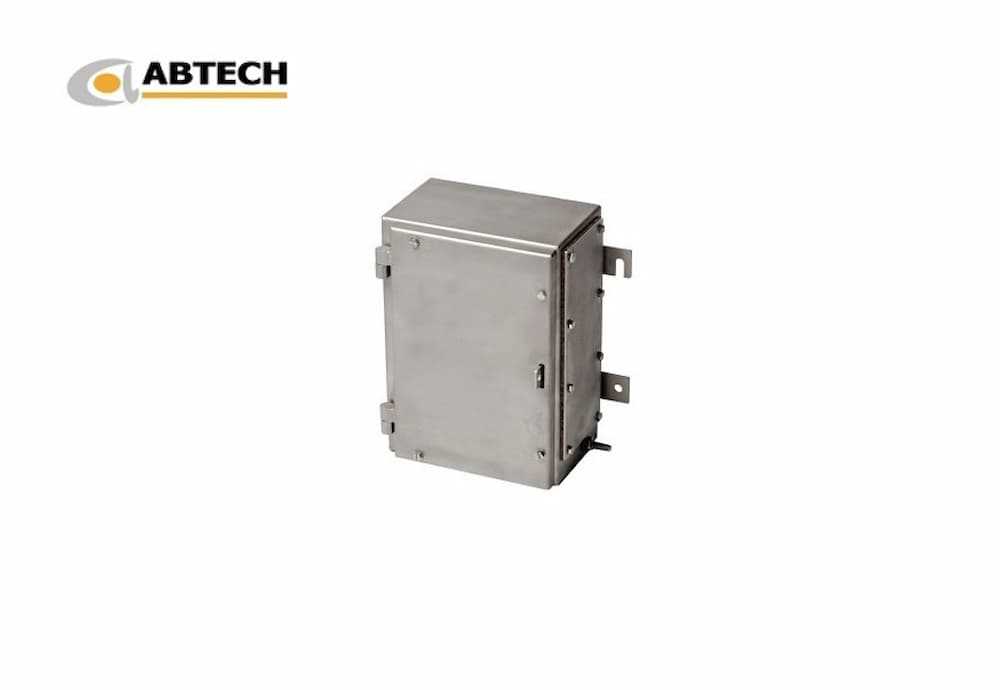

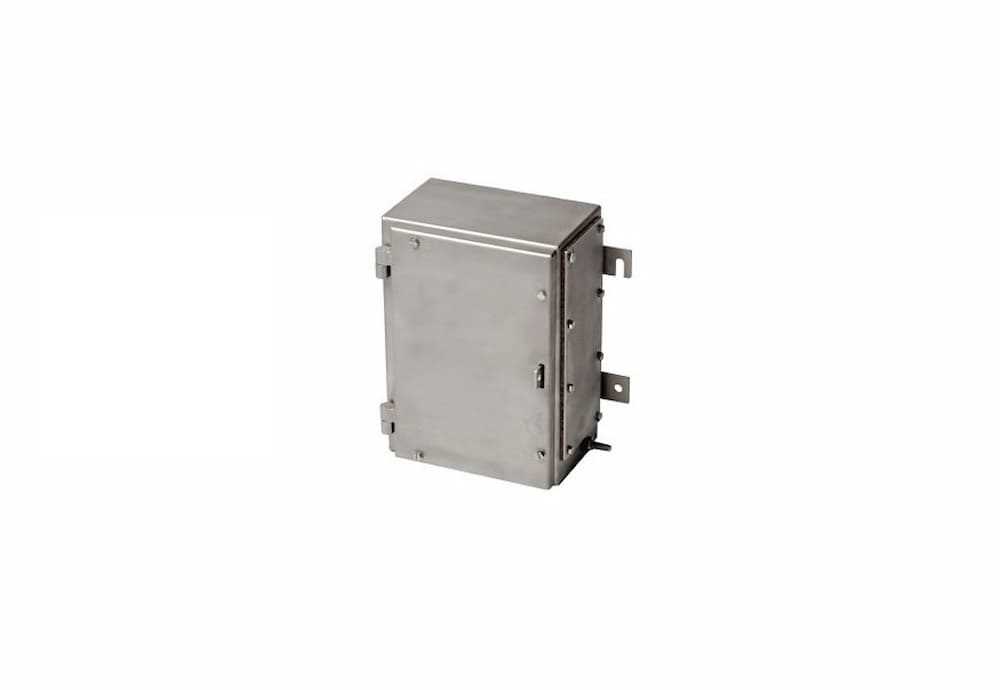

Abtech SX Stainless Steel Enclosure & Junction Box - Grey

• Hazardous-area electrical junction and termination installations
• Zone 1 industrial instrumentation enclosure deployments
• Zone 21 electrical equipment enclosure applications
• Corrosive industrial environment electrical installations
• Oil and gas facility junction box installations
• Process plant instrumentation and cable termination
• Chemical industry electrical enclosure applications
• Industrial control and field wiring termination points
• Outdoor electrical installations requiring ingress protection
• Fire-resistant electrical circuit enclosure applications
• Industrial facilities requiring Type 4X enclosure protection
• Cable entry and termination systems in harsh environments

• 316 stainless steel construction supports corrosion resistance
• IP66/67 protection helps limit dust and water ingress
• Type 4X suitability supports demanding enclosure environments
• Zone 1 and Zone 21 approval supports hazardous-area deployment
• -70 to +175°C range supports extreme operating conditions
• Fire-resistant design supports critical installation requirements
• IEC 331 capability supports specified fire-resistant applications
• Removable gland plates simplify cable-entry configuration
• Rear entries provide additional installation flexibility
• Captive stainless screws maintain secure door compression
• Oversize hinges support controlled enclosure-door operation
• Removable door design simplifies access during installation
• External and internal earth studs support grounding arrangements
• Optional door and gland-plate earth studs extend grounding options
• Ceramic terminals support specified fire-resistant applications

• Brand: Abtech
• Series: SX
• Product Type: Stainless Steel Enclosure and Junction Box
• Material: 316 Stainless Steel
• Colour: Grey
• Hazardous Area: Zone 1 and Zone 21
• Ingress Protection: IP66 / IP67
• Enclosure Type: Type 4X
• Operating Temperature: -70 to +175°C
• Corrosion Resistance: Yes
• Fire Resistance: Suitable for specified fire-resistant applications
• Fire Standard: IEC 331 with ceramic terminals
• Enclosure Sizes: 14 sizes
• Standard Depths: 140 mm, 200 mm, 300 mm
• Gland Plates: Removable, depending on configuration
• Gland Plate Position: One or more of four sides, depending on configuration
• Rear Cable Entry: Available
• Door Fasteners: Minimum 4 captive stainless steel screws
• Hinge Design: Oversize removable hinge design
• Earth Connection: External/internal earth stud
• Additional Earthing: Optional door and gland-plate earth studs
• Internal Earthing: Rail-mounted earth terminals or earth bars can be fitted
• Compatibility: SX-series enclosure components and configured internal mounting hardware
