Home Networking Power 3ft (0.9m) Cat5e Snagless Shielded (FTP) PVC CM Ethernet Network Patch Cable (Blue)

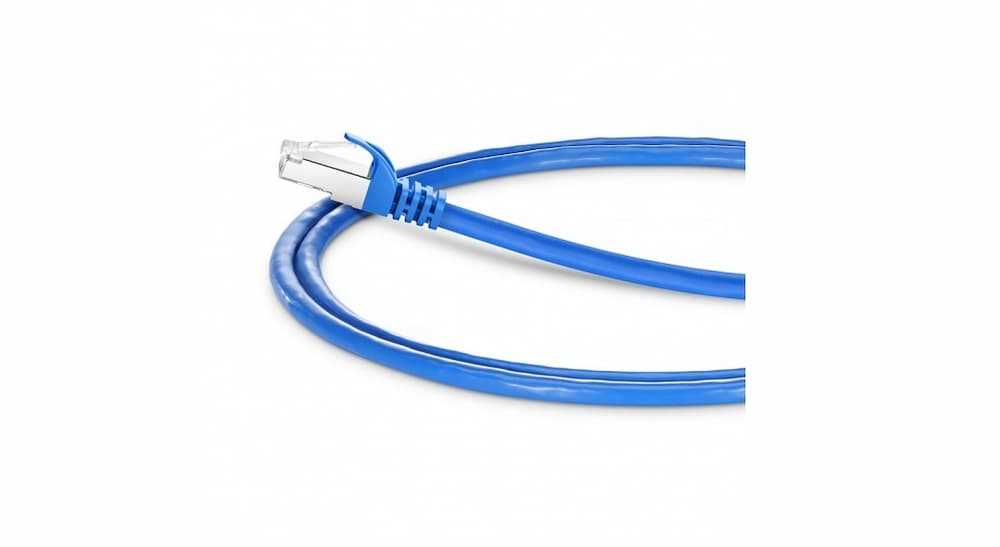

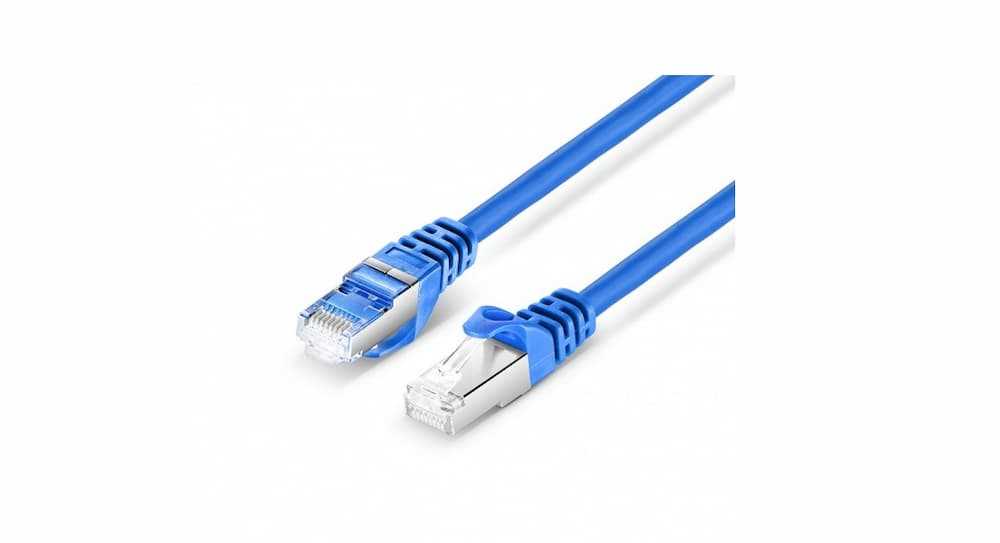

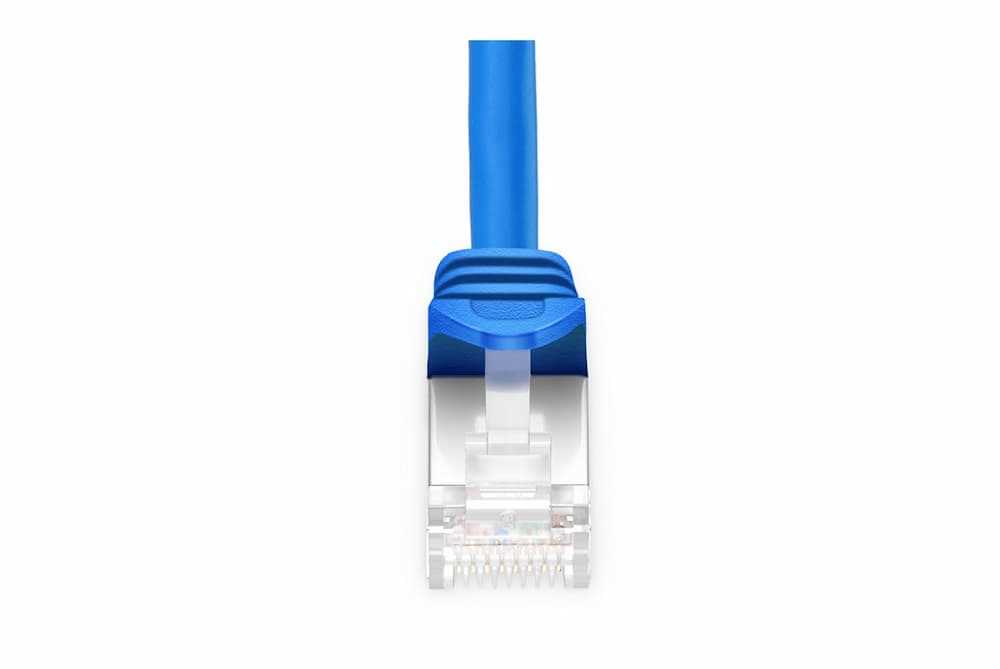

3ft (0.9m) Cat5e Snagless Shielded (FTP) PVC CM Ethernet Network Patch Cable (Blue)


Brand:
No Brand

Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, easy to exchange
  • 1 Year Warranty
       Specification:
  • Cable Type: Cat5e Snagless
  • Shielding Type: Shielded (FTP)
  • Cable Jacket: PVC CM (Round)
  • Length: 3ft (0.9m) (Including Plugs)
  • Conductor Material: Pure Bare Copper
  • Conductor Type: Stranded
  • Data Rate Support: 1000Base-T
  • Maximum (Tested) Frequency: 250MHz
  • Gauge (AWG): 26 (7/0.16mm)
  • Cable External Diameter (mm): 5.4 ± 0.3
  • Max Transmission Distance: 100m
  • Twisted Pairs: 4 Pairs
  • Wire Scheme: T568B, Straight
  • Standard: ISO/IEC 11801, ANSI/TIA-568-C.2
  • Operating Temperature: -20 to +75°C (-4 to 167°F)
  • Installation Temperature: -10 to +50°C (14 to 122°F)
      Feature:
  • Exceed ANSI/TIA-568-D.2 Category 5 and ISO 11801 Class E Standards
  • Up to 250MHz with 1G Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
  • FTP Cable Minimizes EMI and RFI Interference
  • Performance Tested with Fluke and Wired T568B
  • Strain Relief and a Flexible Boot Simplify Moves, Additions and Changes
  • Stranded Cable and RJ45 Modular Plugs with 50µ'' Gold-plated Contacts
  • Use in Voice/Video/VoIP Systems in Local Area Network
  • Support Current and Future Category 5e/5 Applications

Features

Brand:
No Brand
Color:
Blue
Conditions:
New
Warranty:
1Year
