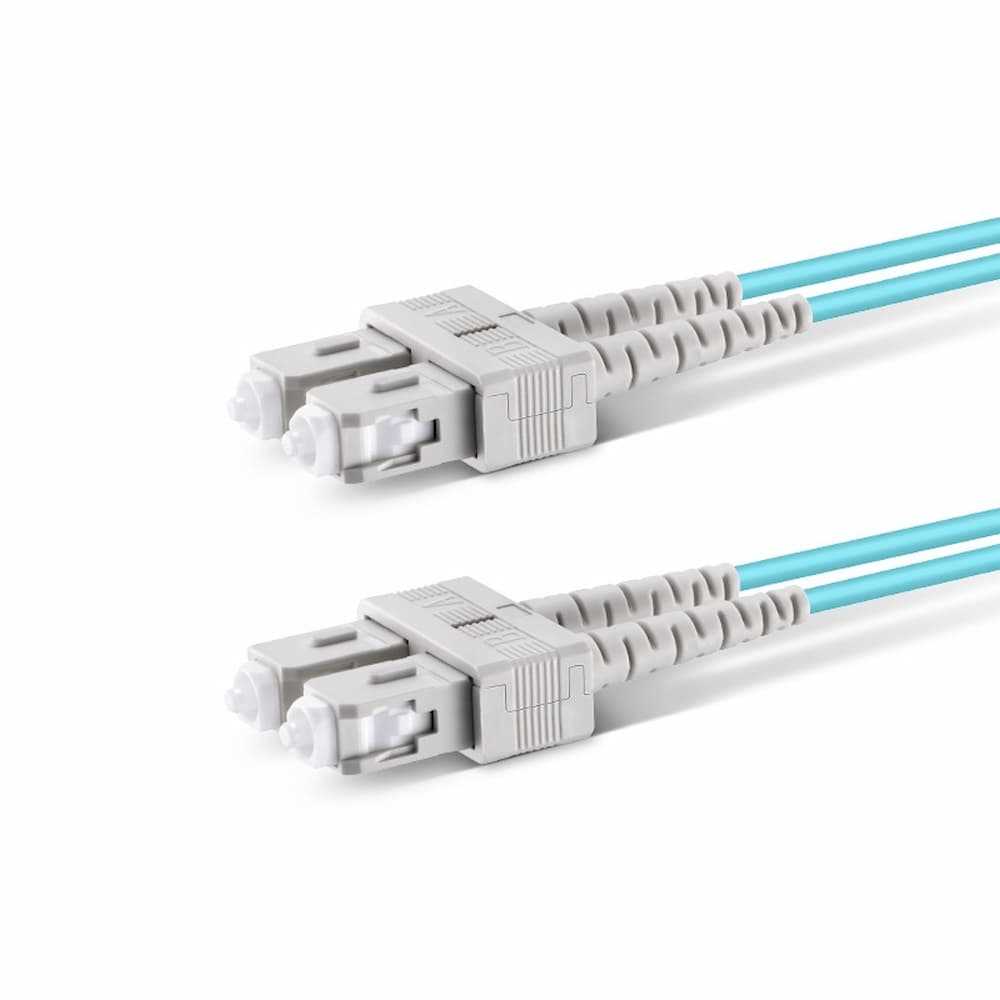

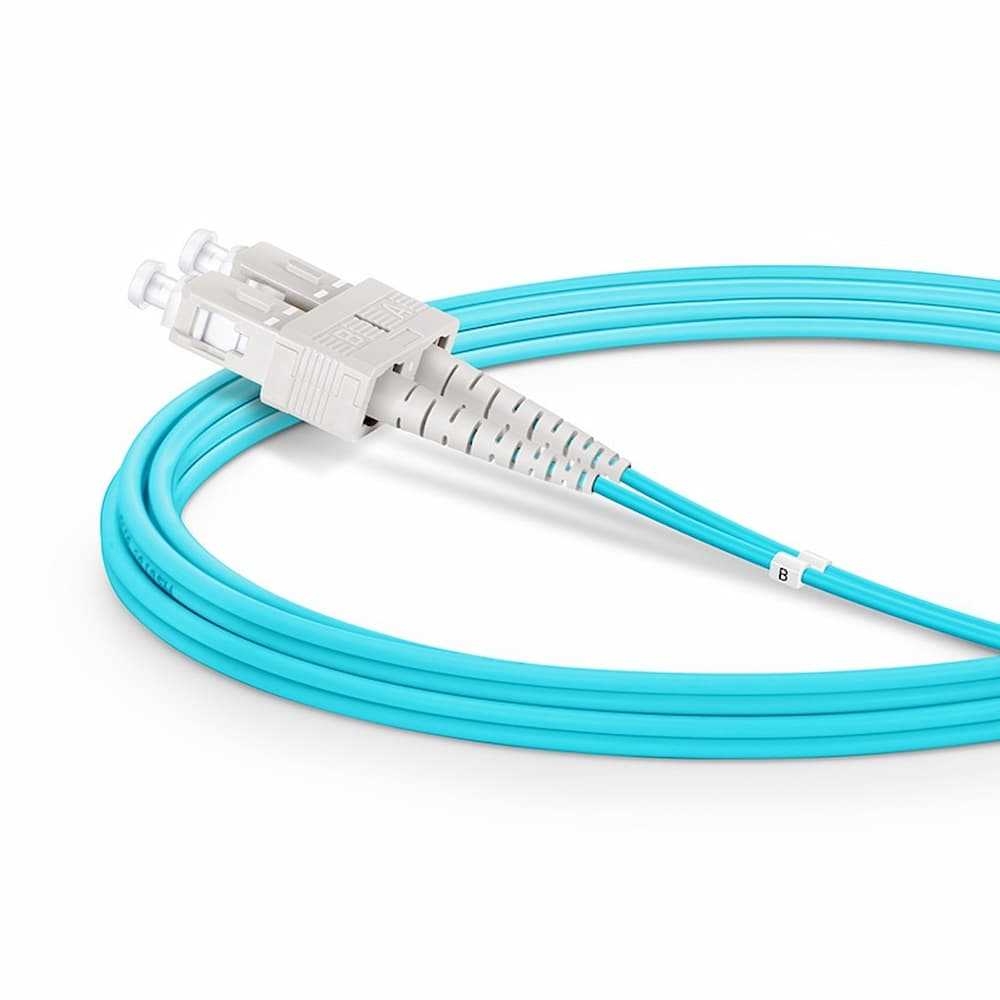

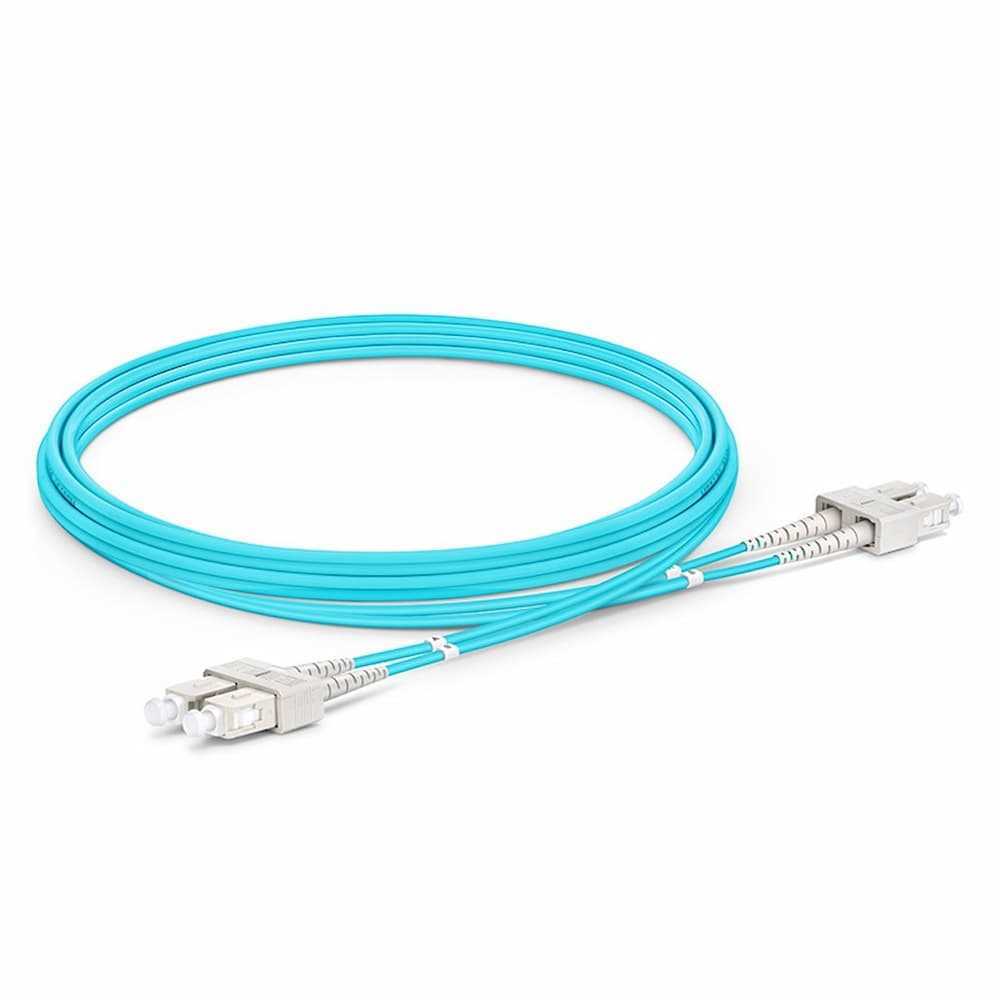

2m (7ft) SC UPC to SC UPC Duplex OM4 Multimode Armored PVC (OFNR) 3.0mm Fiber Optic Patch Cable- Aqua Blue


Brand:
No Brand

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
      Overview:
  • Armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with slight dust, oil, gas, moisture, or even damage-causing rodents
       Product Highlights:
  • Helical Steel Armor Provides Additional Crush and Rodent Protection
  • Routing Indoor Including Data Center Racks, Raised Floors and Runs Between Floors
  • Eliminate the Need for Conduits to Improve Design Flexibility and Lower Installed Costs
  • Bend Insensitive Fiber & 30D Min. Bend Radius
  • Precision Zirconia Ferrule Connectors Ensure Consistent Loss
  • Pull-proof Jacket with Max. 600N Tensile Strength
       Features:
  • Armored Fiber Optic Cable - Designed for Indoor Harsh Environments
  • Armored Optical Fiber Cords Structure
  • Application in Data Center
      Specifications:
  • Connector Type: SC to SC
  • Polish Type: UPC to UPC
  • Fiber Mode: OM4 50/125µm
  • Fiber Count: Duplex
  • Fiber Grade: Bend Insensitive
  • Min. Bend Radius: 30D (Dynamic/Static)
  • Cable Diameter: 3.0mm
  • Cable Jacket: PVC
  • Fiber Cords Structure: Single Armored, Stainless Steel Tube
  • Tensile Load: 400/600N (Long/Short Term)
  • Insertion Loss: =0.3dB
  • Return Loss: =20dB
  • Operating Temperature: -25~70°C
  • Storage Temperature: -25~70°C

Features

Brand:
No Brand
Color:
Aqua Blue
Conditions:
New
Warranty:
1 Year
