Home Networking Power 1m LC UPC Simplex OM3 Multimode PVC (OFNR) 0.9mm Fiber Optic Pigtail (Aqua)

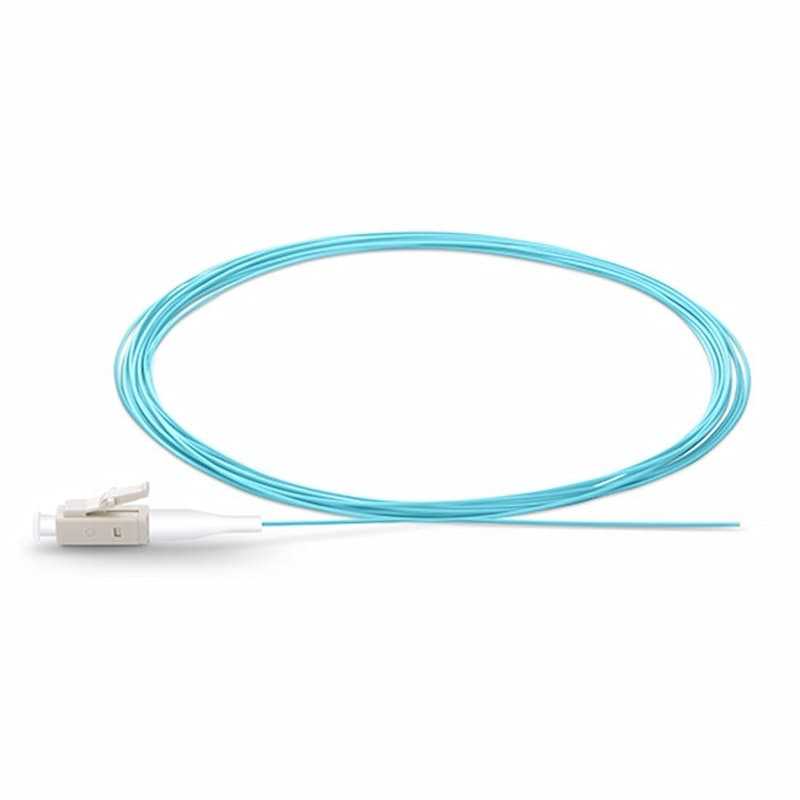

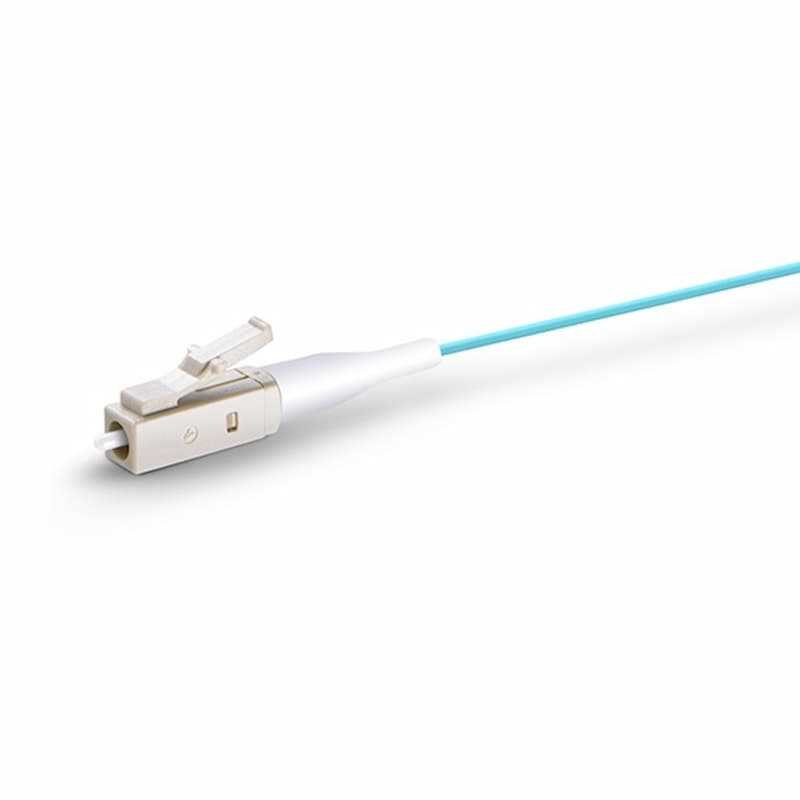

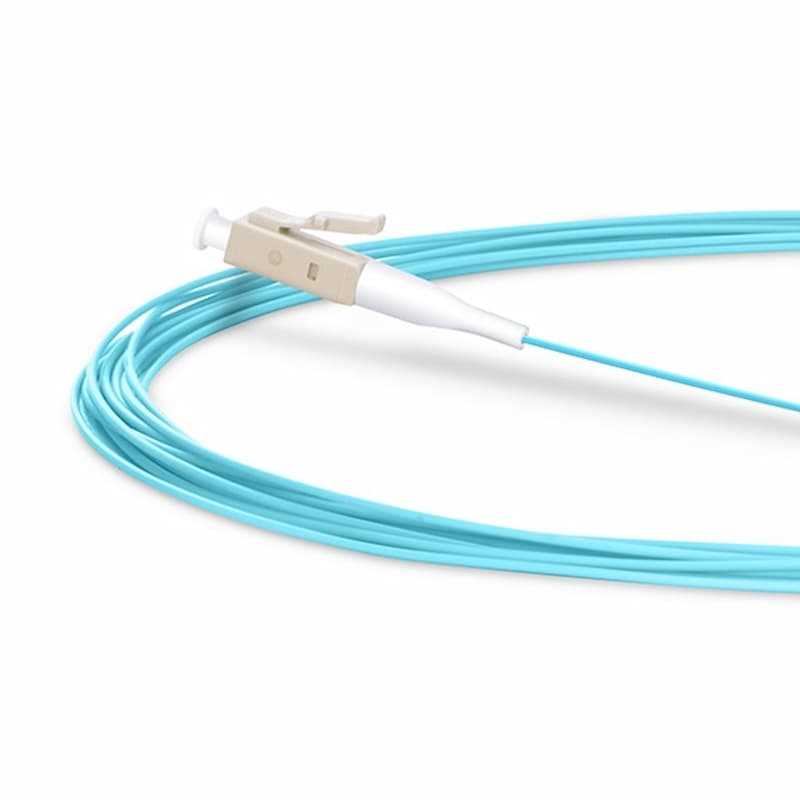

1m LC UPC Simplex OM3 Multimode PVC (OFNR) 0.9mm Fiber Optic Pigtail (Aqua)


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, easy to exchange)

    Features:
  • PVC Flame-retardant Fiber Optic Cable with Tight-buffered Coating on Each Optical Fiber
  • Bend Insensitive Fiber & 7.5mm Min. Bend Radius
  • Optical Testing Guarantees Insertion Loss and Returns Loss
  • Pass All IEC-61754 and TIA-604 (FOCIS) Performance Requirements
  • Support Both Fusion and Mechanical Splicing for Fiber Cabling Systems

    Specification:
  • Connector A: LC
  • Connector B: Unterminated
  • Fiber Mode: 50/125 µm
  • Fiber Count: Simplex
  • Fiber Grade: Bend Insensitive
  • Minimum Bend Radius: 7.5 mm
  • Polish Type: UPC
  • Cable Diameter: 0.9 mm
  • Cable Jacket: PVC
  • Jacket Color: Aqua
  • Wavelength: 850 nm/1300 nm
  • Durability: 500 Times
  • Insertion Loss: =0.3 dB
  • Interchangeability: =0.2 dB
  • Return Loss: =30 dB
  • Vibration: =0.2 dB
  • Operating Temperature: -40~75°C
  • Storage Temperature: -45~85°C







Features

Brand:
No Brand
Color:
Aqua
Conditions:
New
Warranty:
No Warranty
