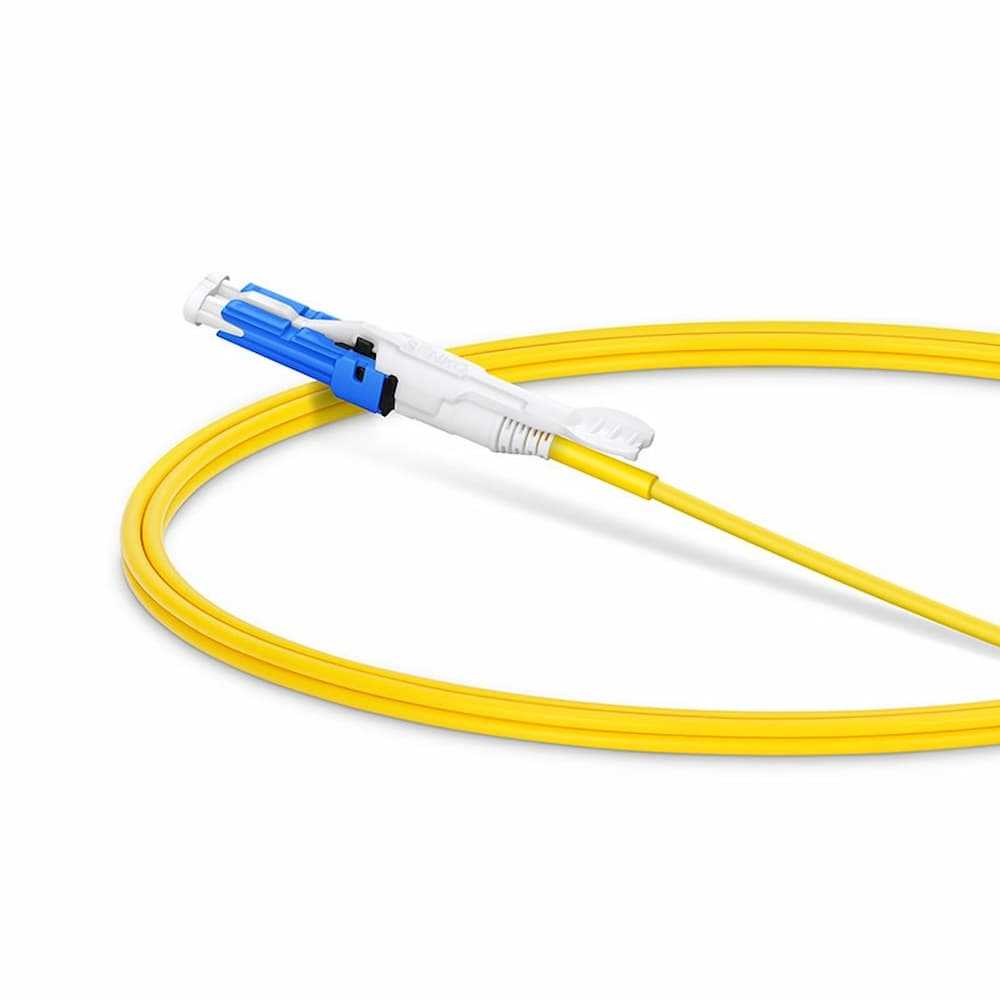

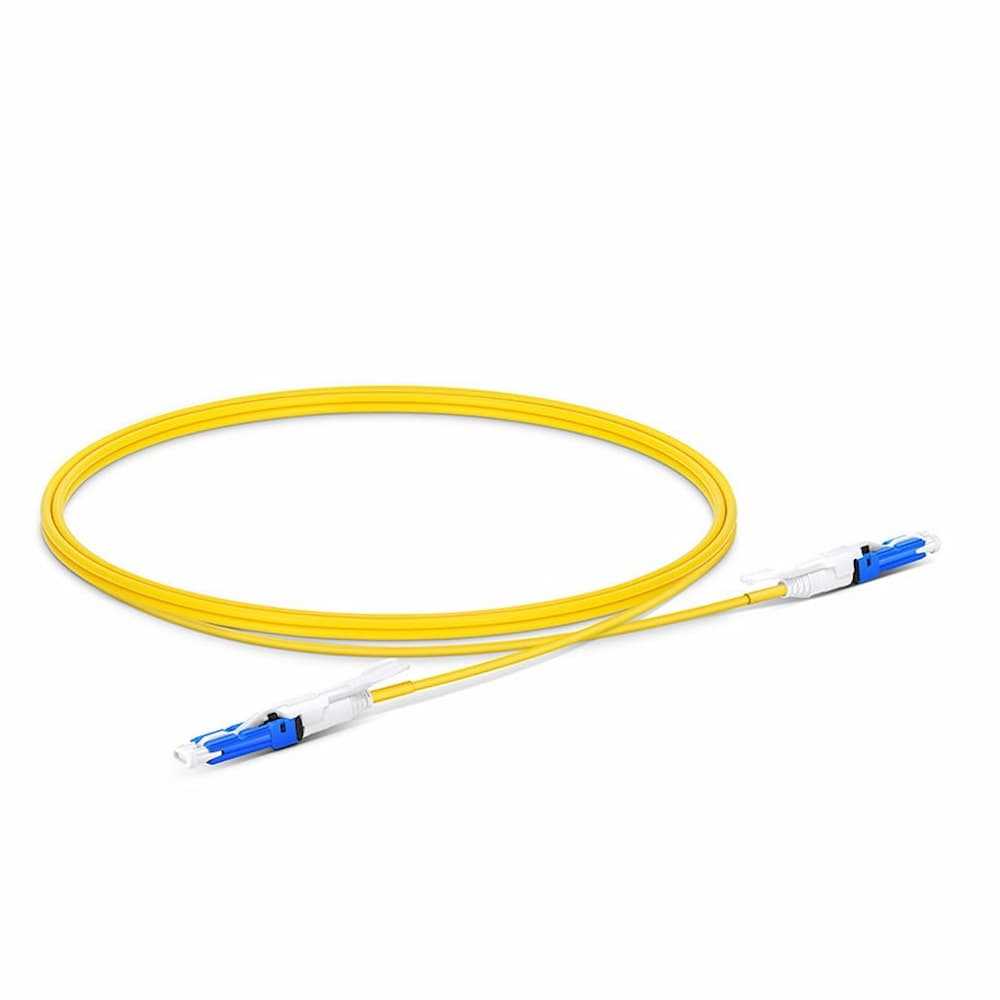

1m (3ft) Senko CS UPC to CS UPC Duplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable- Yellow


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
      Overview:

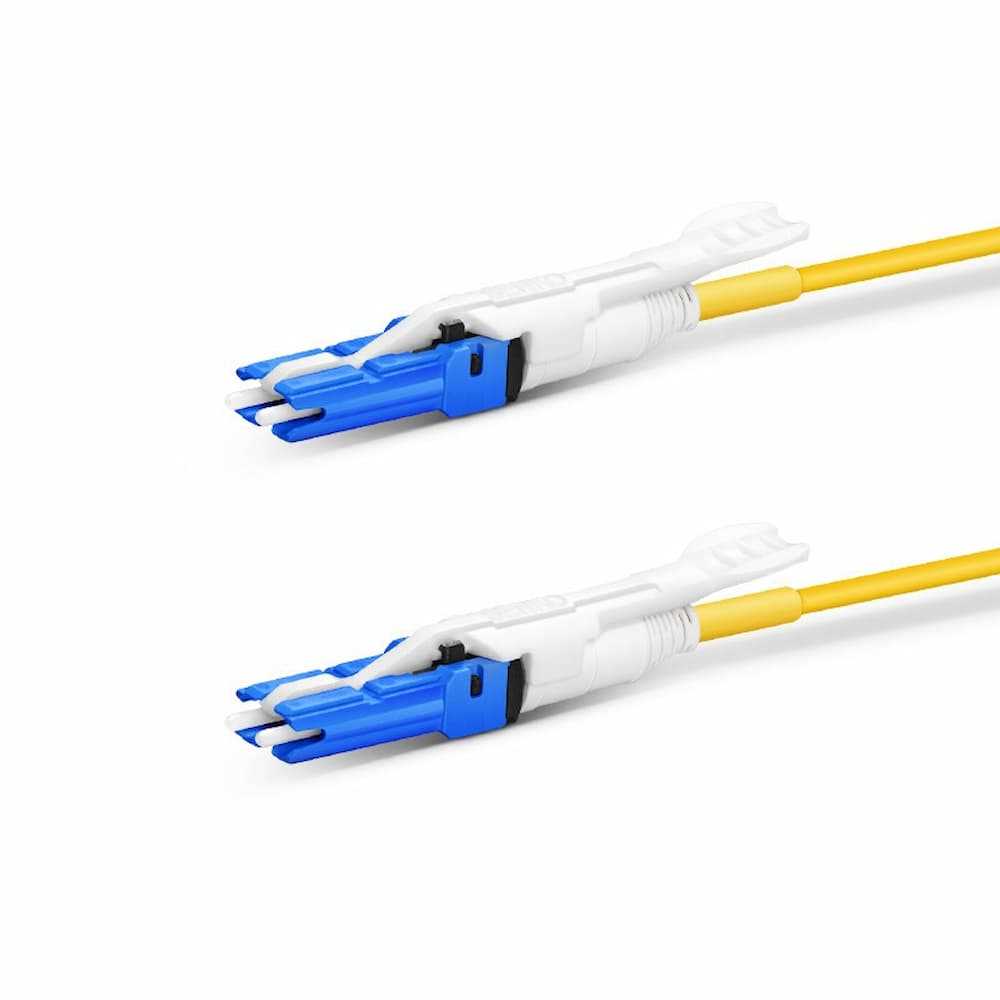

  • Senko CS™ connector is a Very Small Form Factor (VSFF) duplex optical connector and is manufactured using 1.25mm ceramic ferrule technology. Push-pull tabs can easily be inserted and removed from high density cabling without special tooling. It is designed for high-density fiber patching in 200/400/800G data centers which need space saving and reduce cable management problems
       Features:
  • High-density Cabling in 200/400/800G Data Centers
  • 1.5x Fiber Cabling Density over LC Connectors
       Product Highlights:
  • Uniboot Allows One Cable to Carry Two Fibers to Reduce the Cable Bulk When Routing
  • Corning G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
  • Very Small Form Factor (VSFF) Connector, 1.5x Fiber Cabling Density over Duplex LC
  • Push-pull Tab Allows Quick Plug without Tools in High-density Space
  • Support for 200/400/800G Ethernet Communication
      Specifications:
  • Connector Type: Senko CS™ to CS™
  • Polish Type: UPC to UPC
  • Fiber Mode: OS2 9/125µm
  • Wavelength: 1310/1550nm
  • 400G Ethernet Distance: 2km with OSFP-400G-2FR4
  • Minimum Bend Radius: 10mm
  • Insertion Loss: =0.2dB
  • Return Loss: =50dB
  • Fiber Grade: Corning G.657.A1 Fiber(Compatible with G.652.D)
  • Attenuation at 1310 nm: 0.4 dB/km
  • Attenuation at 1550 nm: m0.22 dB/km
  • Fiber Count: Duplex
  • Cable Diameter: 2.0mm
  • Cable Jacket: PVC
  • Polarity: A (Tx) to B (Rx)
  • Operating Temperature: -10~70°C
  • Storage Temperature: -20~70°C

Features

Brand:
No Brand
Color:
Yellow
Conditions:
New
Warranty:
1 Year
