Home Networking Power 1m (3ft) MTP Female to 4 LC UPC Duplex 8 Fibers Type B Breakout Cable (Yellow)

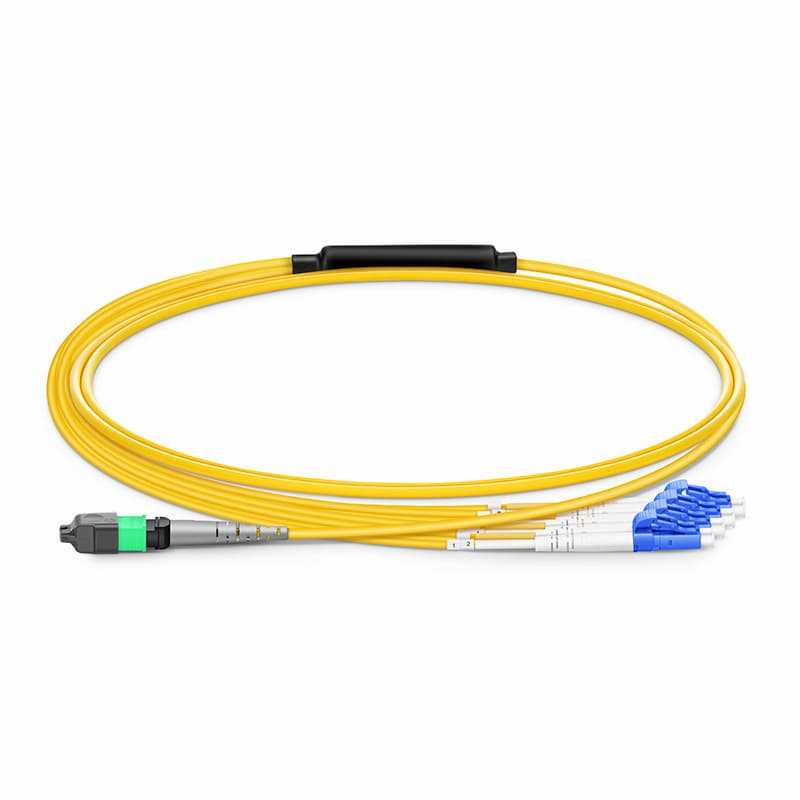

1m (3ft) MTP Female to 4 LC UPC Duplex 8 Fibers Type B Breakout Cable (Yellow)


Brand:
No Brand

Specifications

      Product details:
  • 100% Brand New from Factory and High Quality
  • Economical Price
  • Sold and Shipped from Singapore (hence faster delivery, Easy to exchange)
  • 1 Year Warranty
      Specification:
  • Connector A

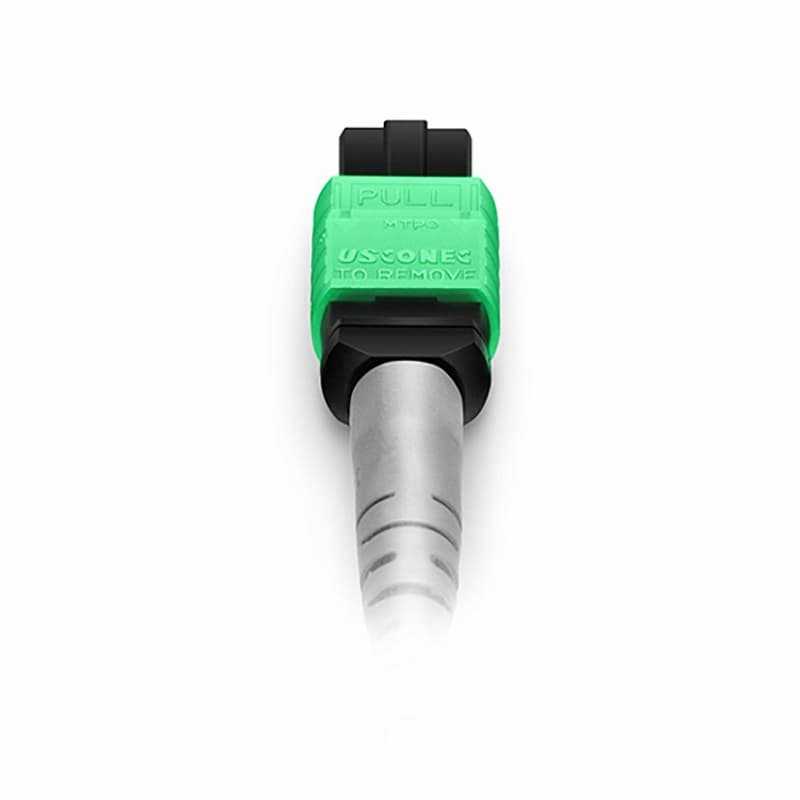

  • US Conec MTP® Female (Pinless)

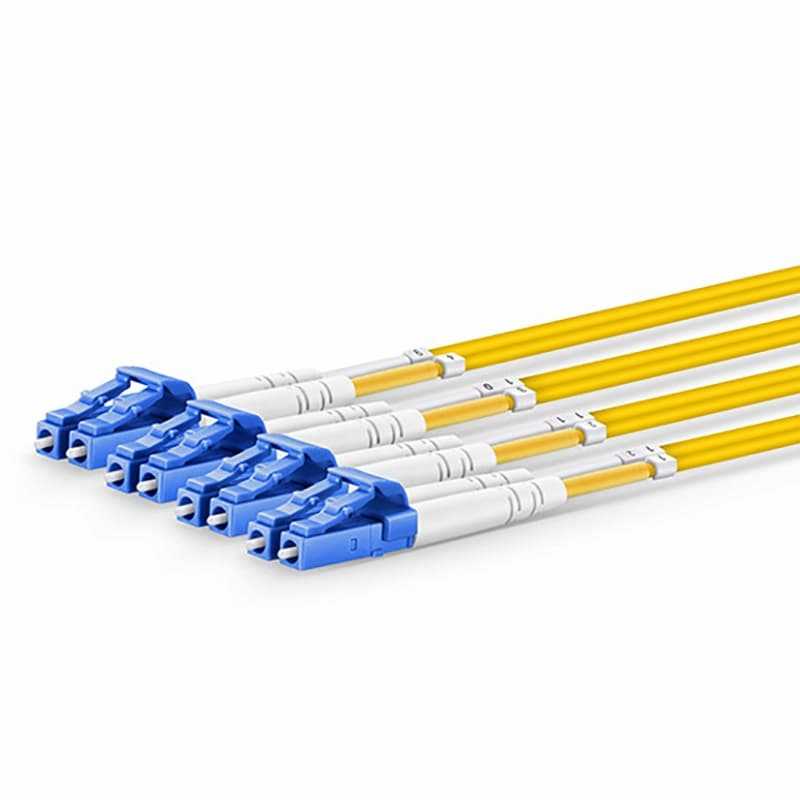

  • Connector B: LC UPC Duplex
  • Fiber Mode: OS2 SMF 9/125µm
  • Wavelength: 1310/1550nm
  • Glass Fiber: Corning SMF-28® Ultra
  • Fiber Grade: G.657.A1 (Compatible with G.652.D)
  • MTP Connector IL: 0.35dB Max (0.15dB Typ.)
  • LC Connector IL: =0.2dB
  • MTP Connector RL: =60dB
  • LC Connector RL: =50dB
  • Attenuation at 1310nm: =0.32dB/km
  • Attenuation at 1550nm: =0.18dB/km
  • Cable Jacket: Plenum (OFNP)
  • Fiber Count: 8 Fibers
  • Jacket OD: 3.0mm
  • Fan-Out Diameter: 2.0mm
  • Installation Tensile Load: 66N
  • Tensile Strength (Long/Short Term): 80/240N
  • Storage Temperature: -40 to +85°C (-40 to 185)
  • Operating Temperature: -10 to +70°C (14 to 158)
      Details:
  • US Conec MTP® Connector with Optimal 0.15dB Typ. IL
  • Corning SMF-28® Ultra Fiber with 10mm Min. Bend Radius
  • OFNP (Plenum) Fire Rating
  • IEC-61754-7 and TIA-604-5 (FOCIS-5)
  • Aggregates 10/25G Ports to 40/100G Ports

Features

Brand:
No Brand
Color:
Yellow
Conditions:
New
Warranty:
1 Year
