Home Networking Power 1m (3ft) MTP-12 (Female) To MTP-12 (Female) OS2 Single Mode Elite Trunk Fibers Cable (Yellow)

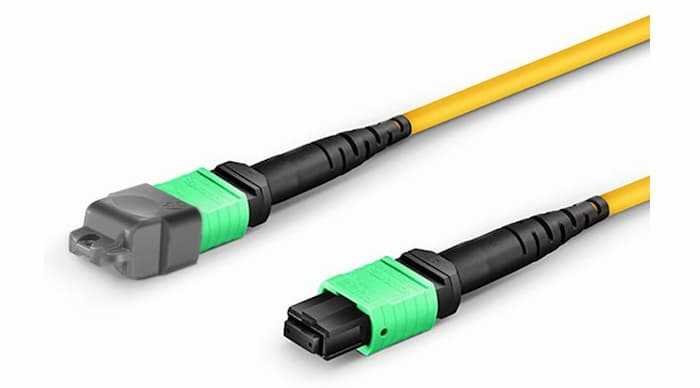

1m (3ft) MTP-12 (Female) To MTP-12 (Female) OS2 Single Mode Elite Trunk Fibers Cable (Yellow)


Brand:
No Brand

Specifications

   Product details:
  • Brand: No Brand
  • 1 Year Warranty
   Specification:

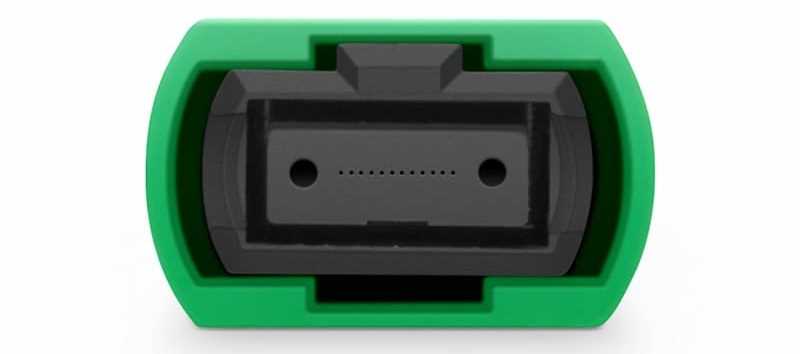

  • Connector A: US Conec MTP® Female (Pinless)
  • Connector B: US Conec MTP® Female (Pinless)
  • Fiber Mode: OS2 9/125µm SM
  • Wavelength: 1310/1550nm
  • Glass Fiber: Corning SMF-28® Ultra
  • Fiber Grade: G.657.A1 (Compatible with G.652.D)
  • Polish Type: APC to APC
  • Minimum Bend Radius: 10mm
  • Insertion Loss: 0.35dB Max (0.15dB Typ.)
  • Return Loss: =60dB
  • Attenuation at 1310nm: =0.32dB/km
  • Attenuation at 1550nm: =0.18dB/km
  • Jacket OD: 3.0mm
  • Cable Jacket: Plenum (OFNP)
  • Installation Tensile Load: 66N
  • Tensile Strength (Long/Short Term): 80/240N
  • Operating Temperature: -10 to 70°C (14 to 158?)
  • Storage Temperature: -40 to 85°C (-40 to 185?)
   Details:
  • US Conec MTP® Connector with Optimal 0.15dB Typ. IL
  • Corning SMF-28® Ultra Fiber with 10mm Min. Bend Radius
  • OFNP (Plenum) Fire Rating
  • IEC-61754-7 and TIA-604-5 (FOCIS-5)
  • Ideal for 40/100G Indoor Connections



Features

Brand:
No Brand
Color:
Yellow
Conditions:
New
Warranty:
1 Year
