Home Networking Power 1m (3ft) LC UPC to ST UPC Duplex OM1 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable - Orange

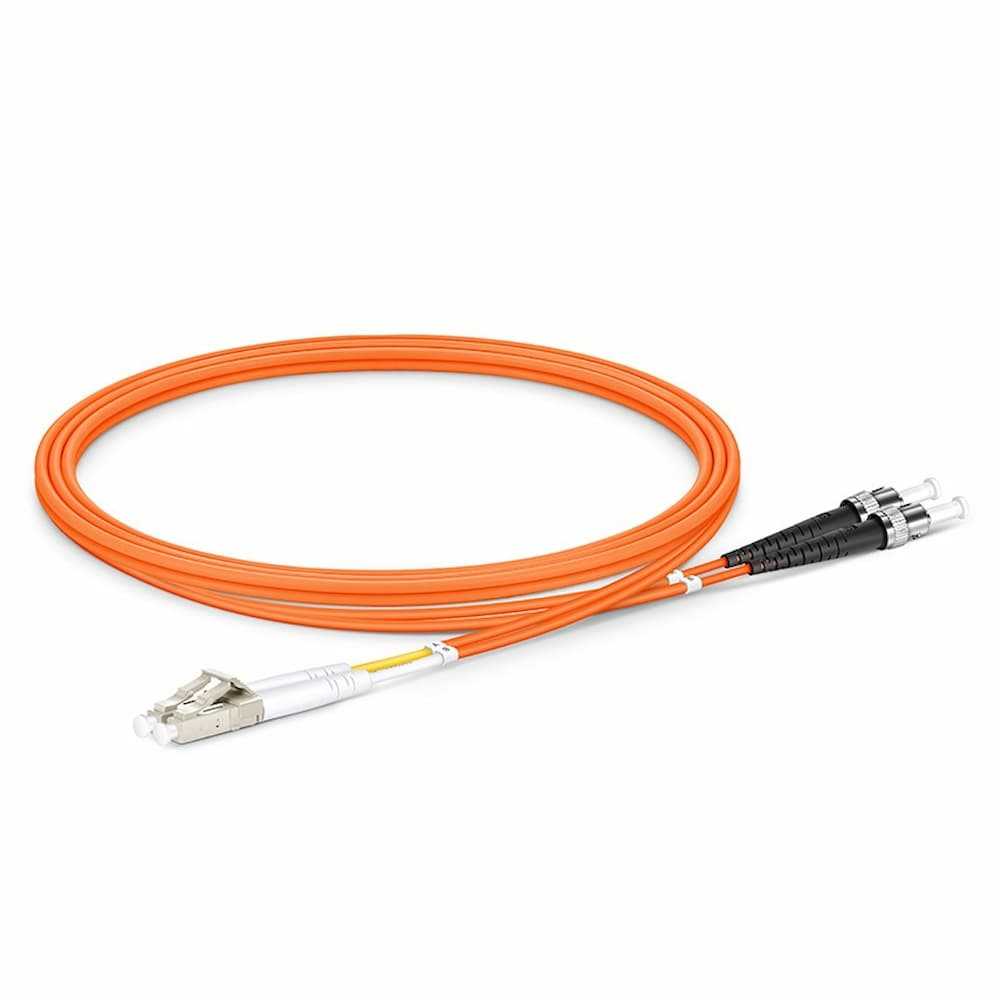

1m (3ft) LC UPC to ST UPC Duplex OM1 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable - Orange


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, easy to exchange)
  • 1 year Warranty

    Product Highlights:
  • PVC (Riser) Flame-retardant Jacket
  • Precision Zirconia Ferrule Connectors Ensure Low Loss
  • Duplex Clip Prevents the Fiber from Rotating and Maintains the Polarity
  • 10N Tensile Strength of Boot & 180° Rotation of Connector
  • Optical Testing Ensures Network Performance
  • Compliant to TIA-604 (FOCIS)

    Specification:

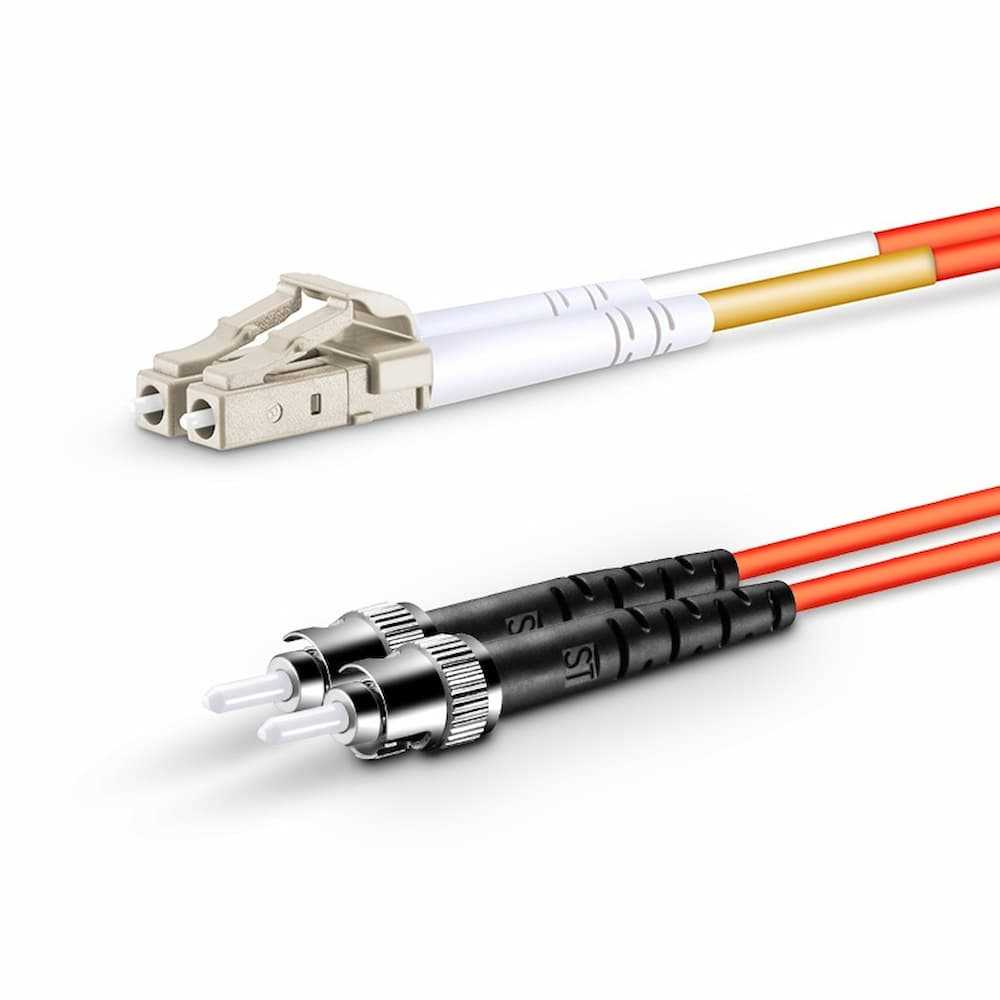

  • Connector Type: LC UPC to ST UPC
  • Fiber Grade: G.651
  • Fiber Count: Duplex
  • Fiber Mode: OM1 62.5/125µm
  • Wavelength: 850/1300nm
  • 1G Ethernet Distance: 280m at 850nm
  • Insertion Loss: =0.3dB
  • Return Loss: =30dB
  • Min. Bend Radius (Fiber Core): 15mm
  • Min. Bend Radius (Fiber Cable): 20/10D (Dynamic/Static)
  • Attenuation at 850nm: 3.0 dB/km
  • Attenuation at 1300nm: 1.0 dB/km
  • Cable Jacket: PVC
  • Cable Diameter: 2.0mm
  • Polarity: A (Tx) to B (Rx)
  • Operating Temperature: -20~70°C





Features

Brand:
No Brand
Color:
Orange
Conditions:
New
Warranty:
1 Year
