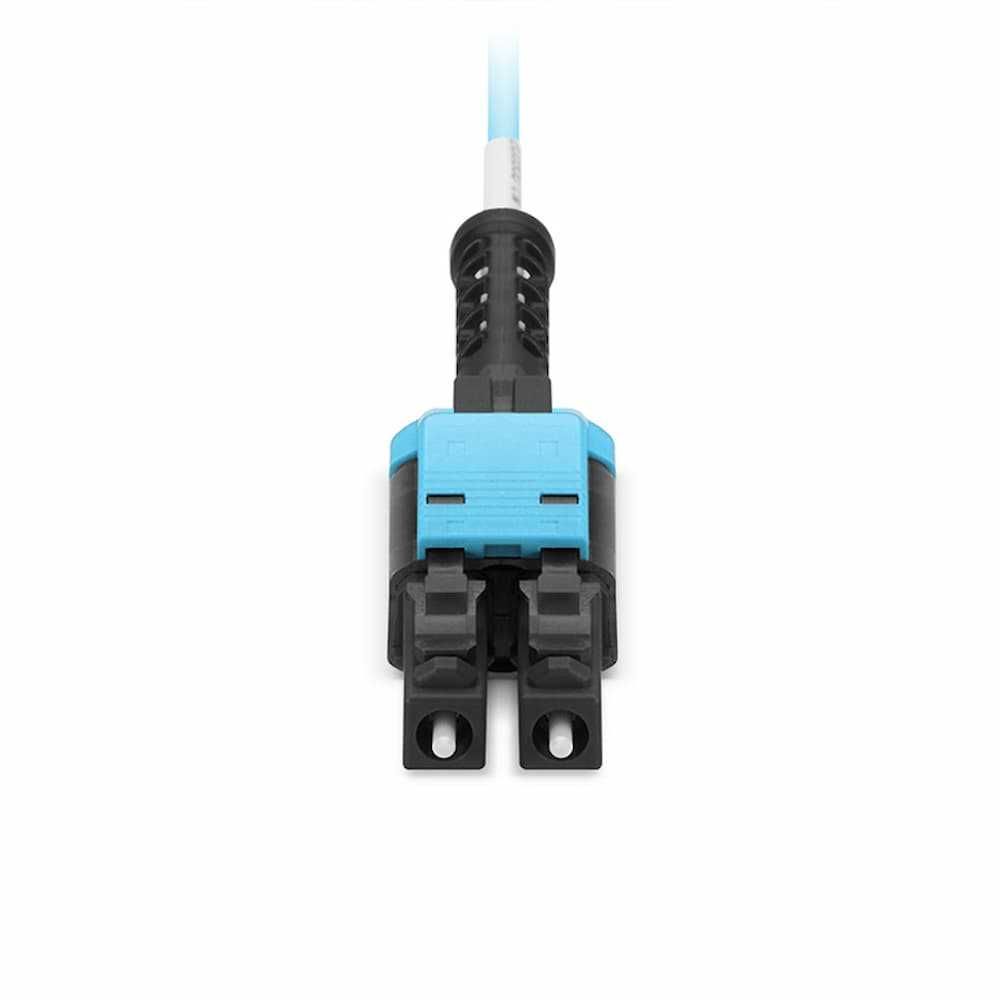

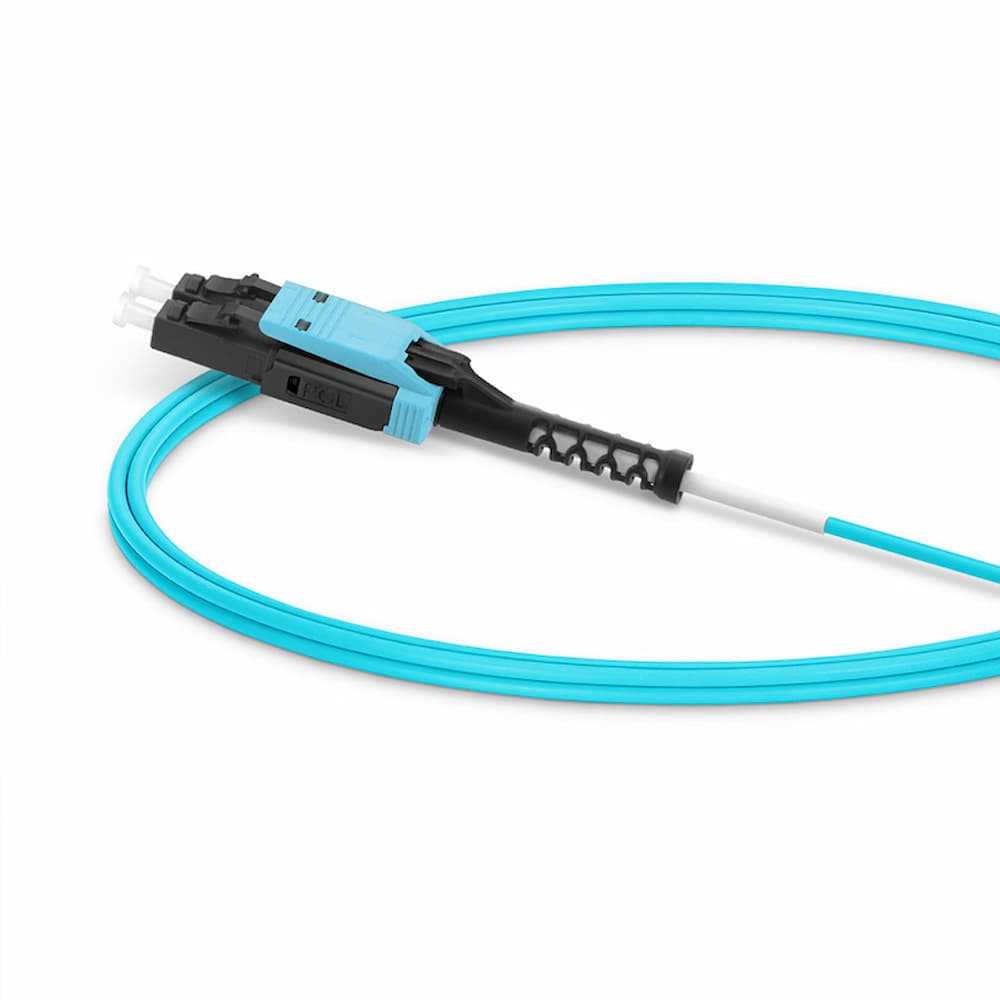

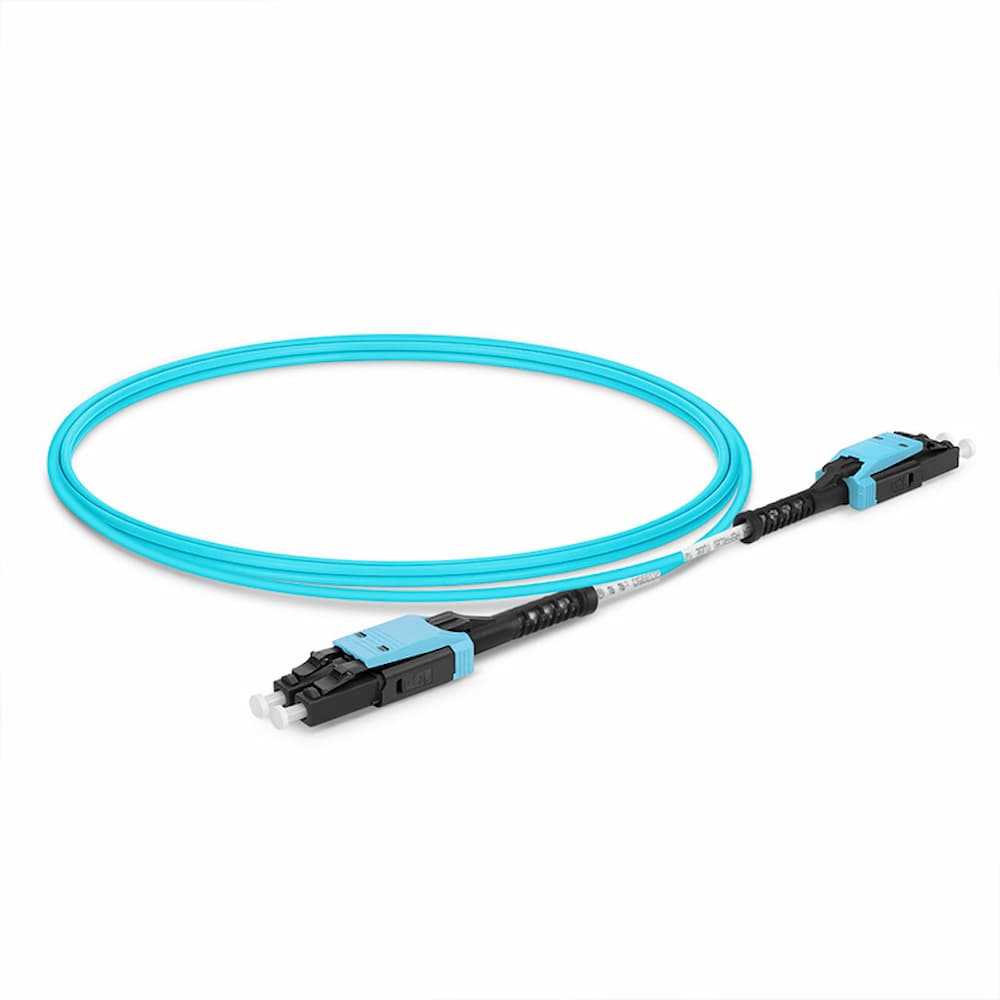

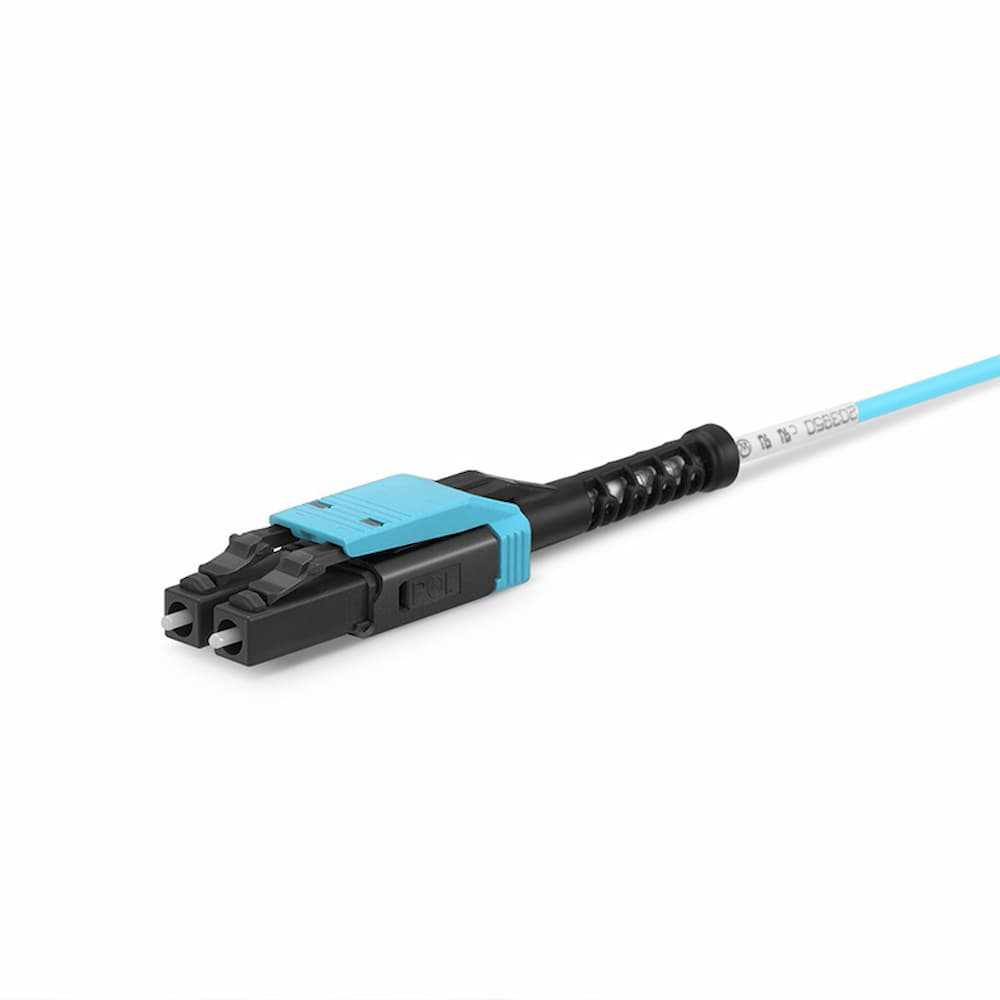

1m (3ft) LC UPC to LC UPC Flat Clip Uniboot Duplex with Push Pull Boot OM4 Multimode PVC (OFNR) 2.0mm BIF Fiber Optic Patch Cable- Aqua Blue


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
       Product Highlights:
  • Uniboot Allows One Cable to Carry Two Fibers to Reduce the Cable Bulk When Routing
  • Termination Is Tested To Ensure Network Performance
  • Corning Bend Insensitive Fiber & 7.5mm Min. Bend Radius
  • Push-pull Boot Allows Quick Plug without Tools in High-density Space
  • Reverse Polarity without Exposing the Fibers or Needing Any Tools
  • Designed for High-Density Fiber Cabling in Data Centers
  • Support for Various Transmission Speed Ethernet Applications
       Features:
  • 50% Space-saving Uniboot for High Density Applications
  • Spine-Leaf Architecture Achieve Larger Network Scale
  • Meet Your Polarity Reversal Needs
  • Meet the Various Indoor Installation Needs
       Specifications:
  • Connector Type: LC UPC to LC UPC
  • Fiber Grade: Bend Insensitive
  • Fiber Mode: OM4 50/125µm
  • Wavelength: 850/1300nm
  • 40G Ethernet Distance: 150m at 850nm
  • 100G Ethernet Distance: 100m at 850nm
  • Insertion Loss: =0.3dB
  • Return Loss: =30dB
  • Min. Bend Radius (Fiber Core): 7.5mm
  • Min. Bend Radius (Fiber Cable): 20/10D (Dynamic/Static)
  • Attenuation at 850nm: 3.0dB/km
  • Attenuation at 1300nm: 1.0dB/km
  • Fiber Count: Duplex
  • Cable Diameter: 2.0mm
  • Cable Jacket: PVC
  • Polarity: A (Tx) to B (Rx)
  • Durability: 500 cycles
  • Tensile Strength (Long/Short Term): 60/100N
  • Operating Temperature: -10 to 70°C (14 to 158?)
  • Storage Temperature: -20 to 70? (-4 to 158?)

Features

Brand:
No Brand
Color:
Aqua Blue
Conditions:
New
Warranty:
1 Year
