Home Networking Power 1m (3ft) LC UPC to LC APC Simplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable - Yellow

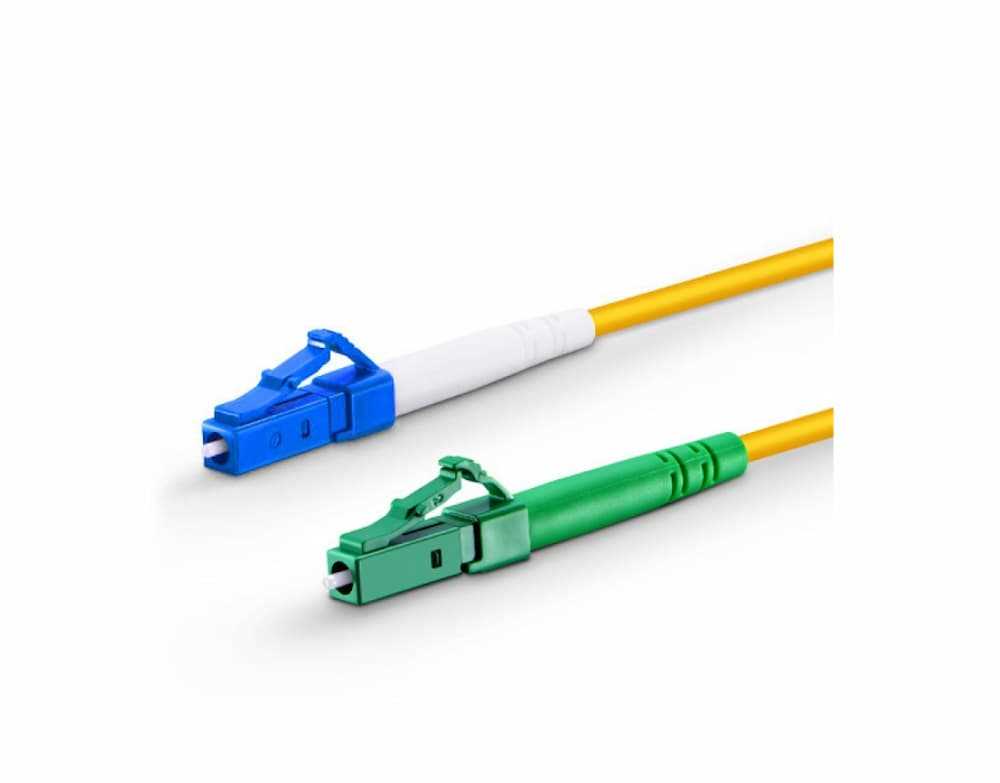

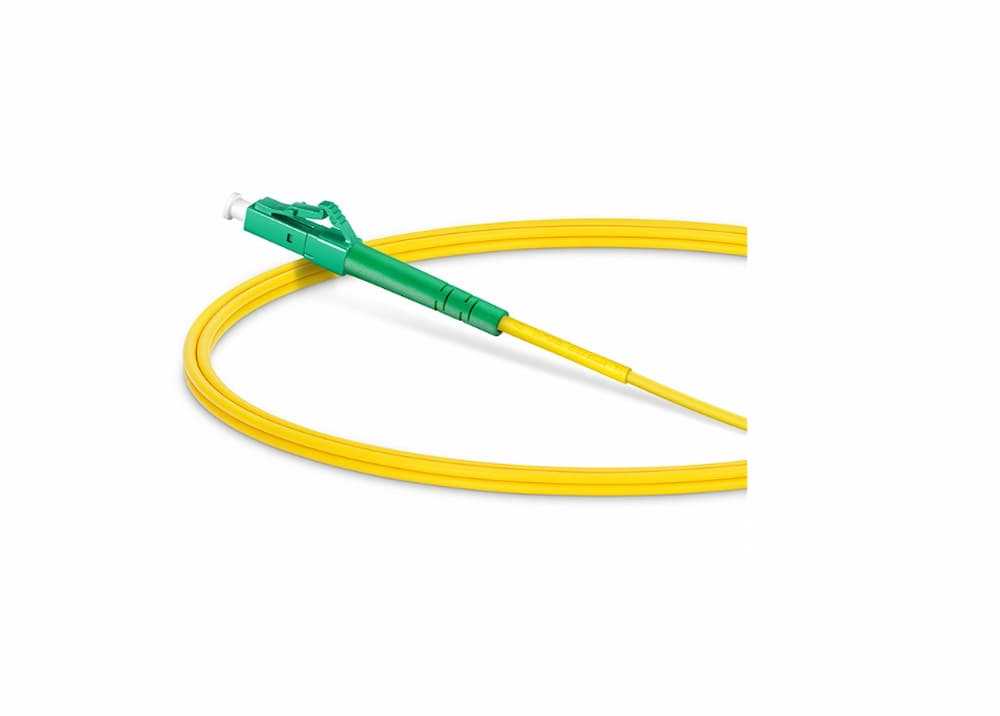

1m (3ft) LC UPC to LC APC Simplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable - Yellow


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, easy to exchange)
  • 1 year Warranty

    Specification:
  • Connector Type: LC UPC to LC APC
  • Fiber Grade: G.657.A1 (Compatible with G.652.D)
  • Fiber Mode: OS2 9/125µm
  • Wavelength: 1310/1550nm
  • Insertion Loss: =0.3dB
  • Return Loss: UPC=50dB, APC=60dB
  • Min. Bend Radius (Fiber Core): 10mm
  • Min. Bend Radius (Fiber Cable): 10/5D (Dynamic/Static)
  • Attenuation at 1310 nm: 0.36 dB/km
  • Attenuation at 1550 nm: 0.22 dB/km
  • Fiber Count: Simplex
  • Cable Diameter: 2.0mm
  • Cable Jacket: PVC
  • Polarity: A (Tx) to B (Rx)
  • Operating Temperature: -20~70°C
  • Storage Temperature: -40~80°C







Features

Brand:
No Brand
Color:
Yellow
Conditions:
New
Warranty:
1 Year
