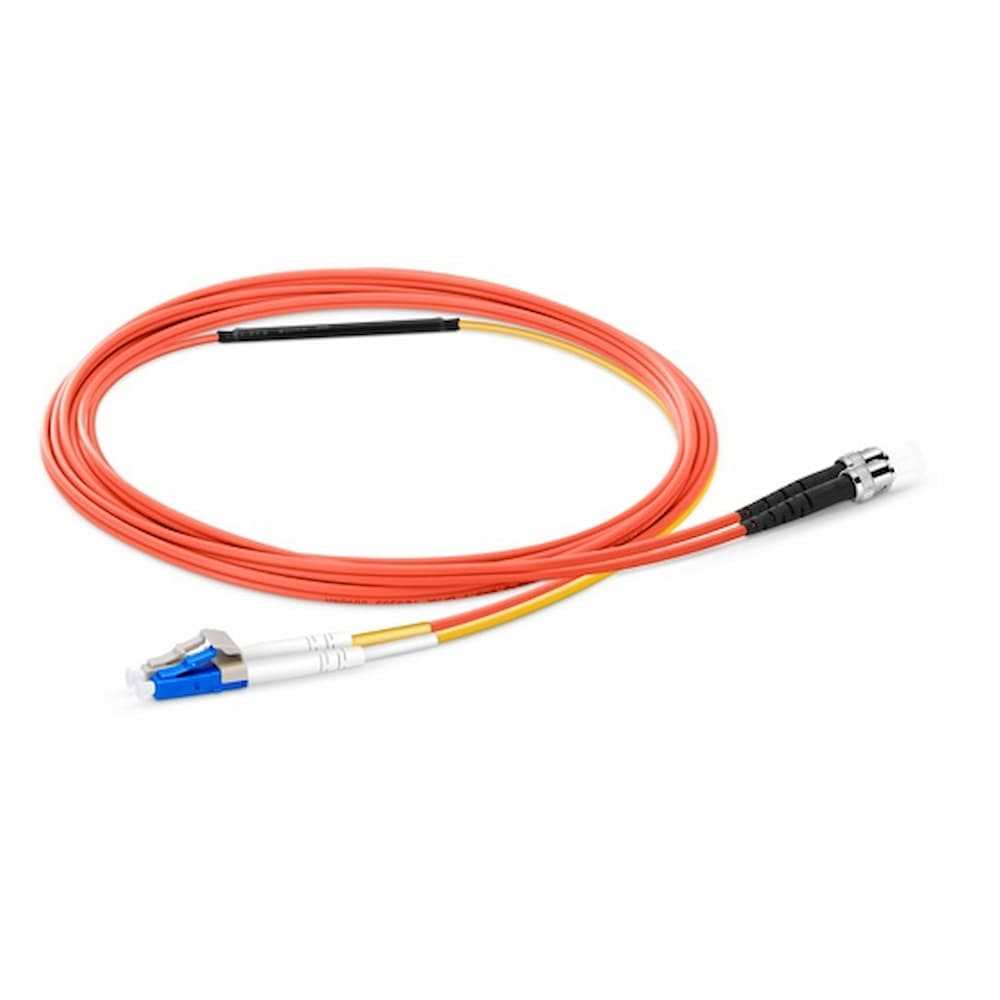

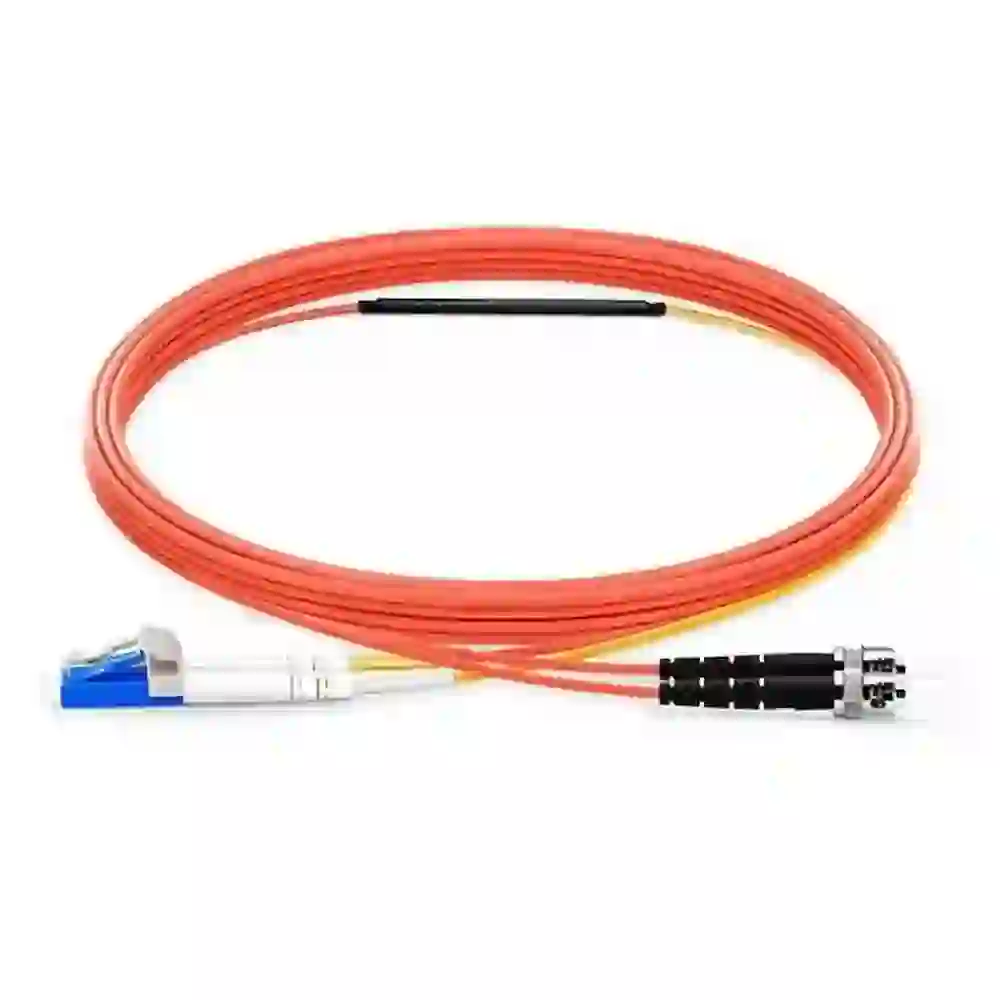

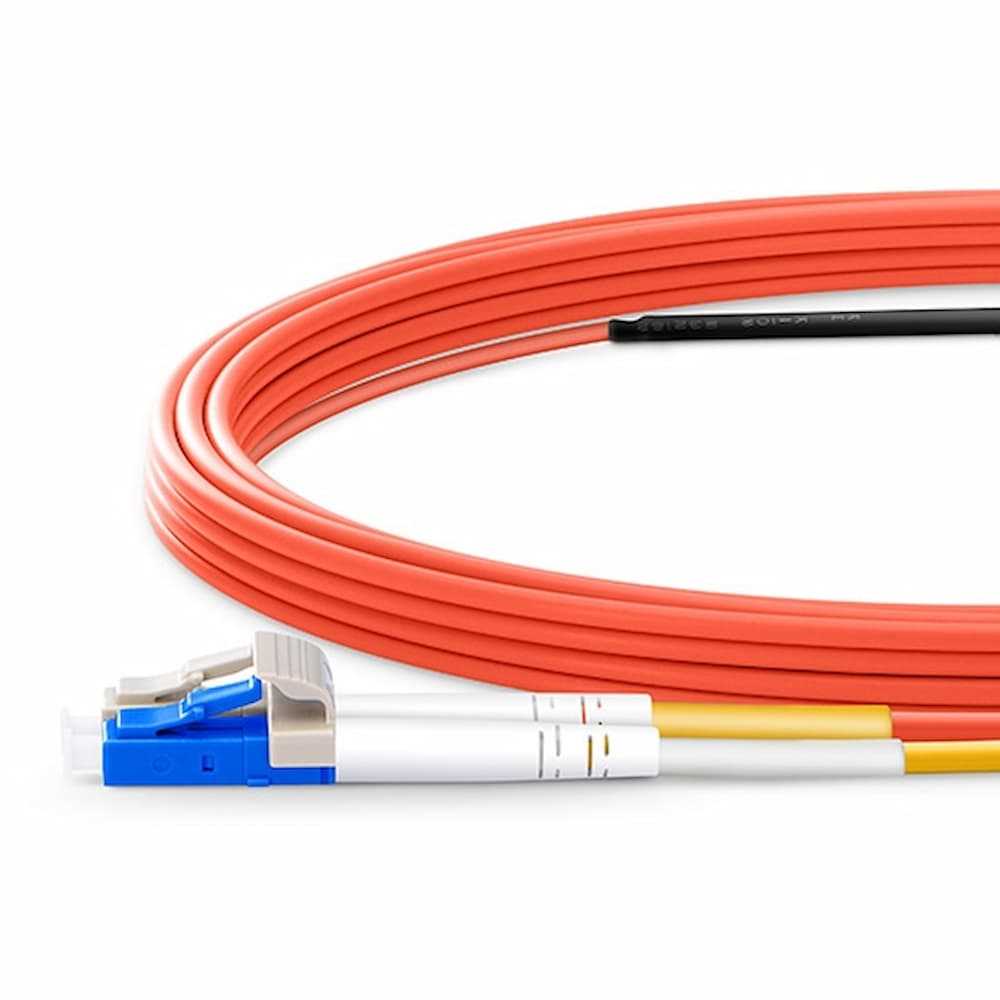

1m (3ft) LC to ST OM1 Mode Conditioning PVC (OFNR) Fiber Optic Patch Cable- Orange


Brand:
No Brand

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
       Overview:
  • FS.COM supplies standard and customized mode conditioning patch cables (MCP) in 62.5/125 and 50/125 , which are specified for 1000BASE-LX/LH and 10GBASE-LRM transceivers transmitting in the 1300nm window and applicated over multimode plants.

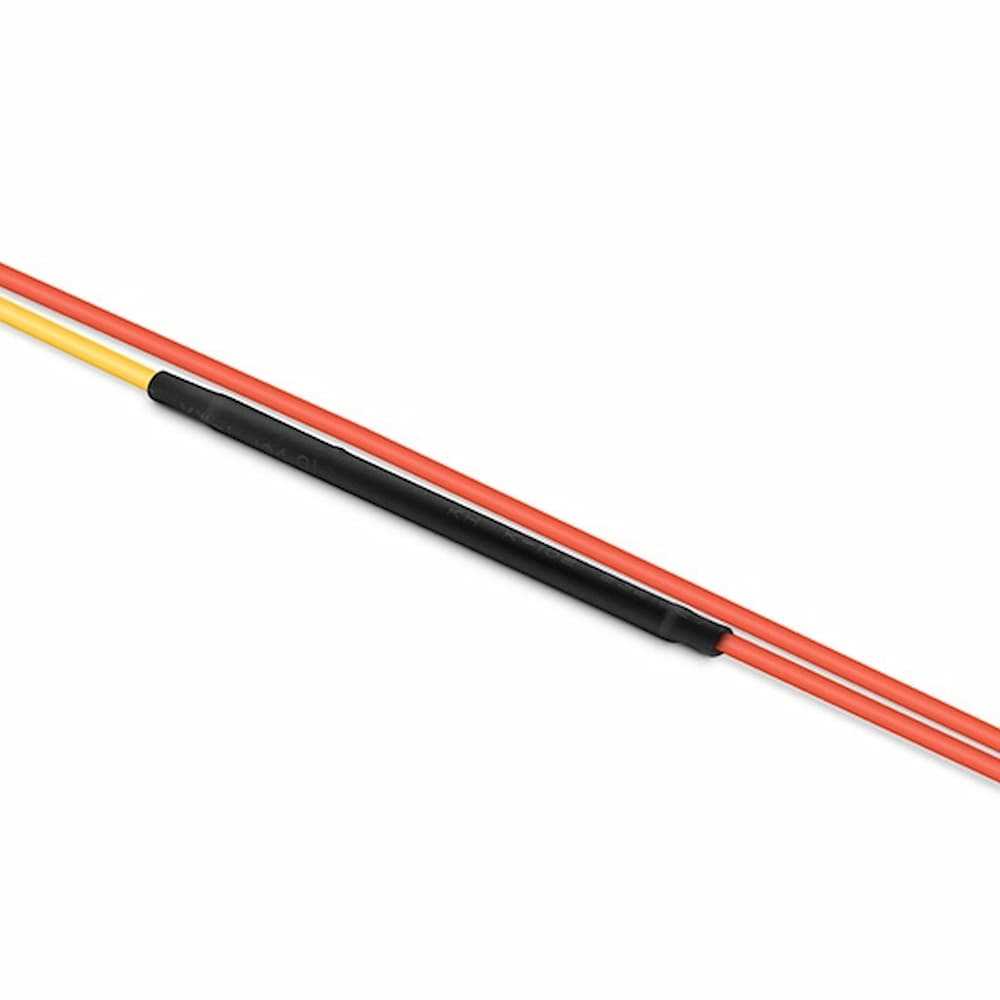

  • Launching a singlemode laser into the center of a multimode fiber can cause multiple signals to be generated that confuses the receiver at the other end of the fiber. These multiple signals, caused by Differential Mode Delay (DMD) effects, severely limit the cable distance lengths for operating Gigabit Ethernet. A mode conditioning patch cable eliminates these multiple signals by allowing the singlemode launch to be offset away from the center of a multimode fiber.
       Features:

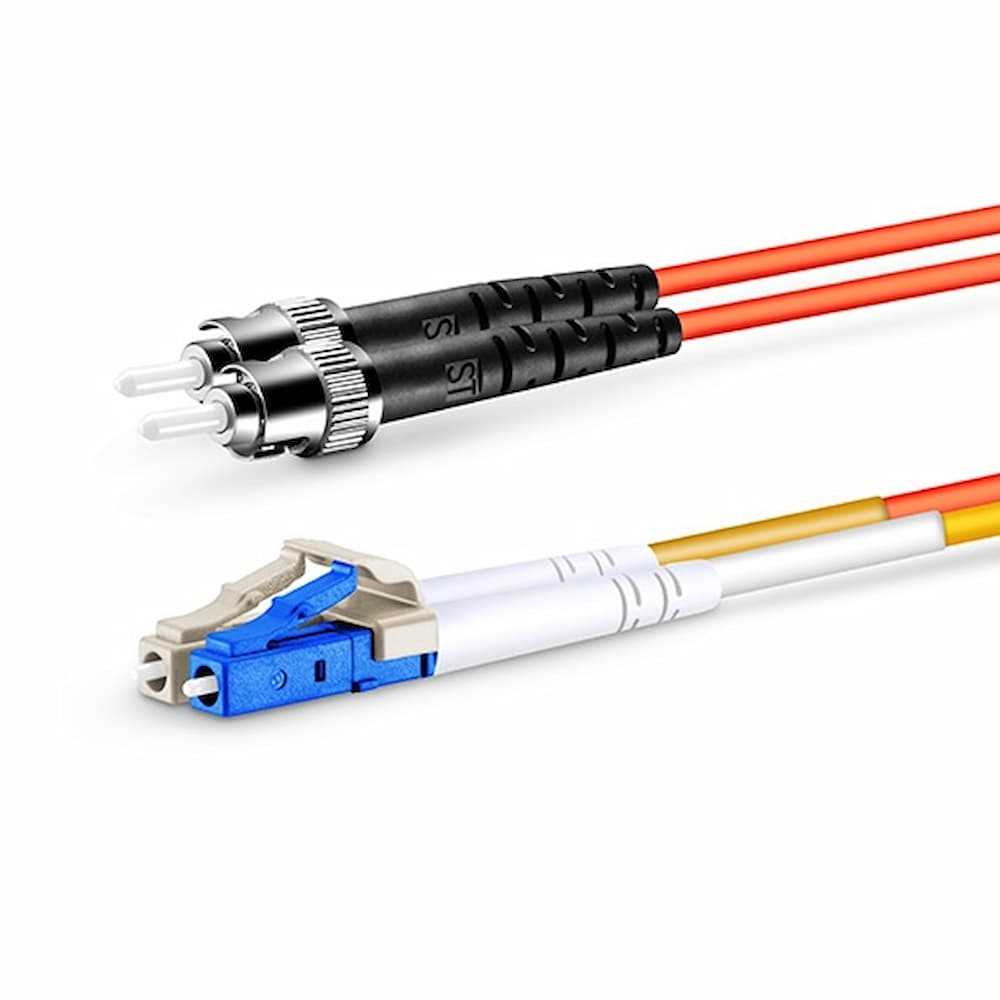

  • LC Equip to ST OM1 Mode Conditioning Fiber Optic Patch Cable
  • Mode Conditioning Patch Cable Installation over Multimode Cable Plant
  • Application in Data Center
  • LC SM 9/125µm Equip to ST OM1 62.5/125µm Mode Conditioning Patch Cable
      Specifications:
  • Connector: LC to ST
  • Fiber Mode: 9/125µm and 62.5/125µm
  • Connector Polish: UPC to UPC
  • Operating Wavelength: 850nm and 1310nm
  • Insertion Loss: =0.3dB@1310nm
  • (SM to MM Plus Connector loss)
  • Return Loss: >55dB
  • (SM connector)
  • Coupled Power Ratio: 28dB=CPR=40dB
  • Jacket OD: 2.0mm
  • Jacket Material: PVC
  • Durability: 1000 times
  • Operating Temperature: -40 to 75°C
  • Storage Temperature: -40 to 85°C

Features

Brand:
No Brand
Color:
Orange
Conditions:
New
Warranty:
1 Year
