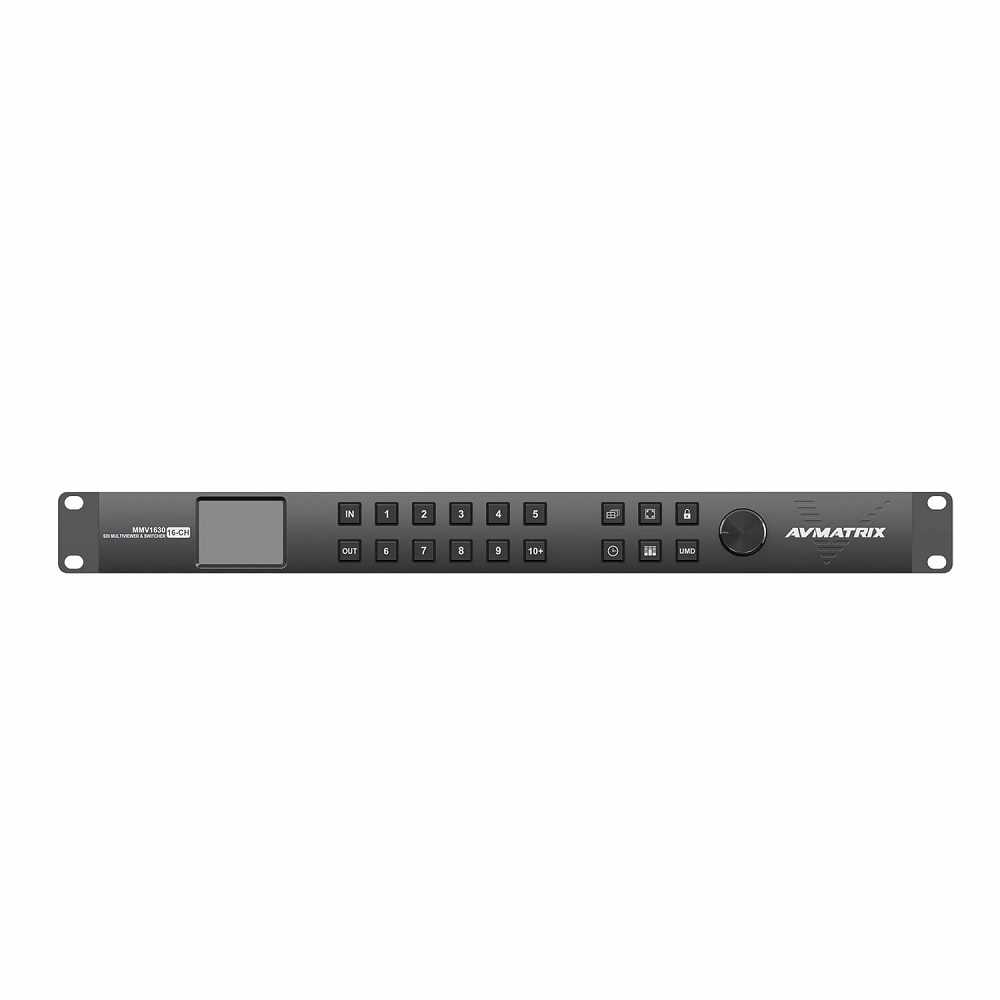

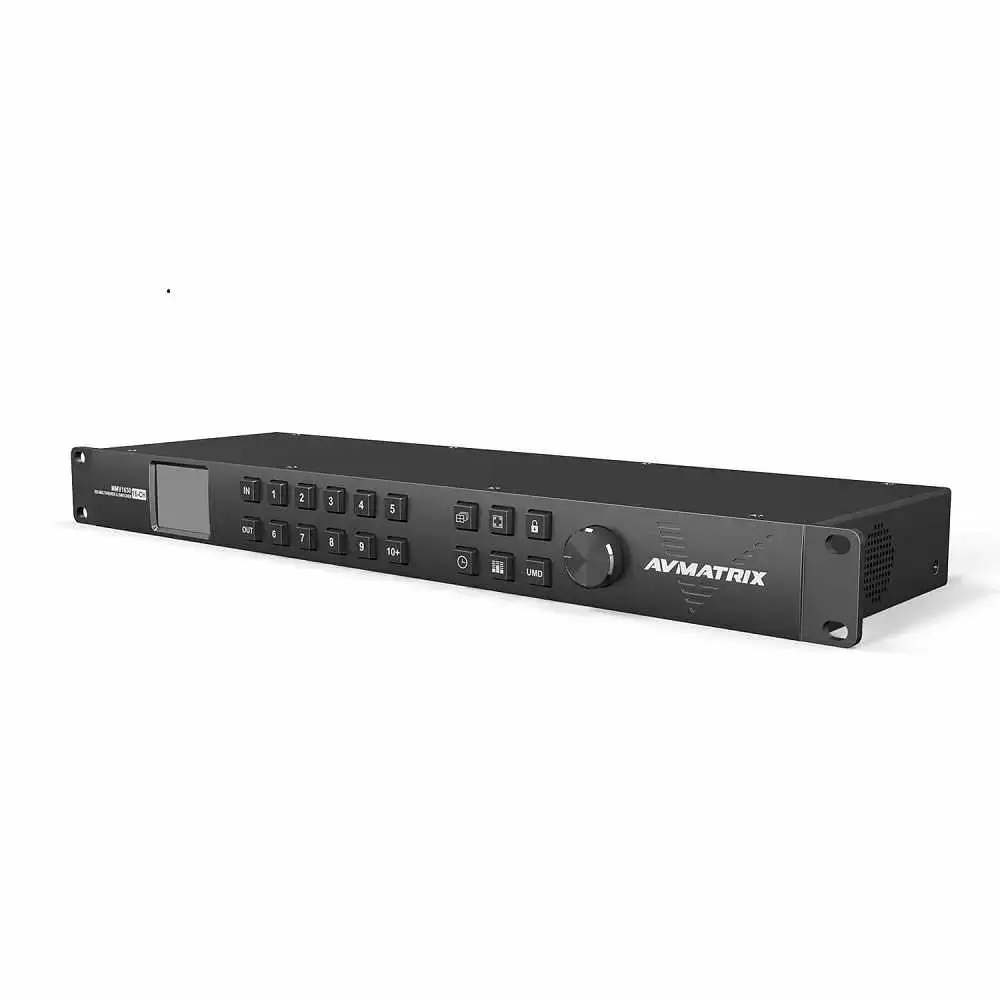

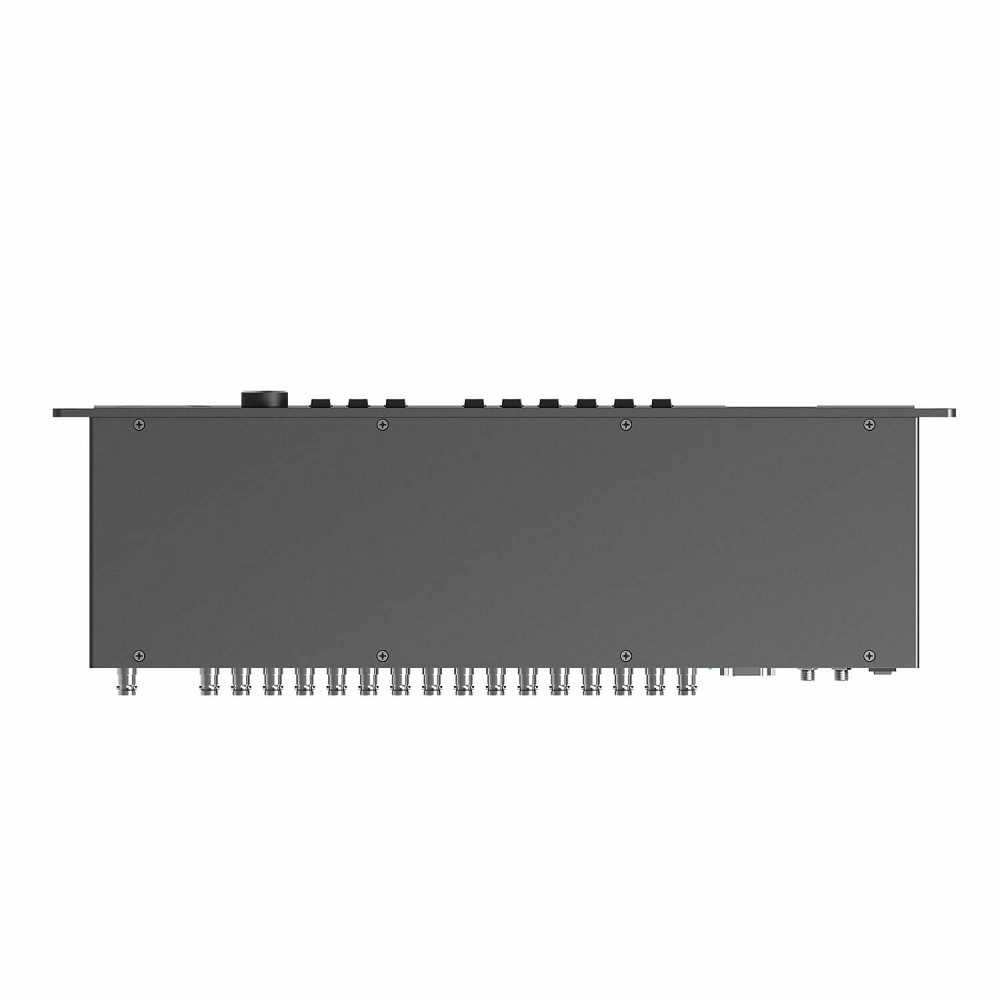

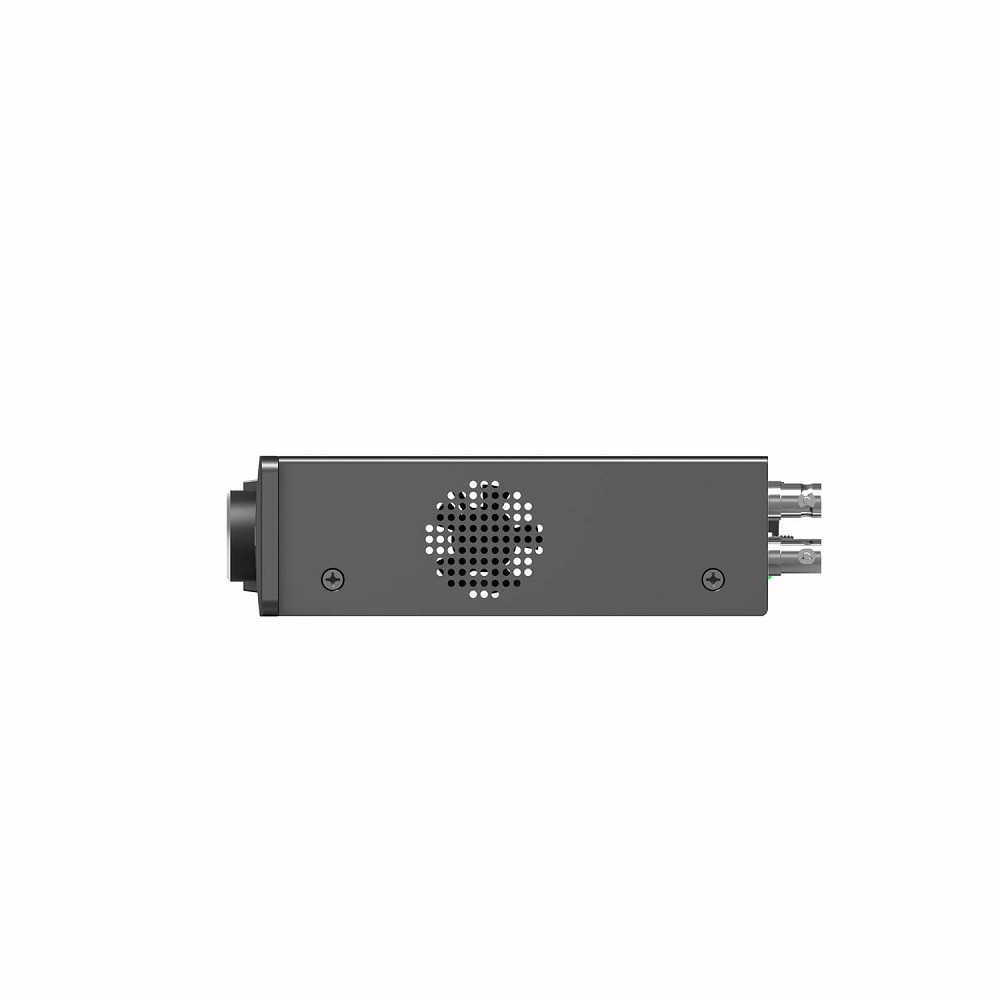

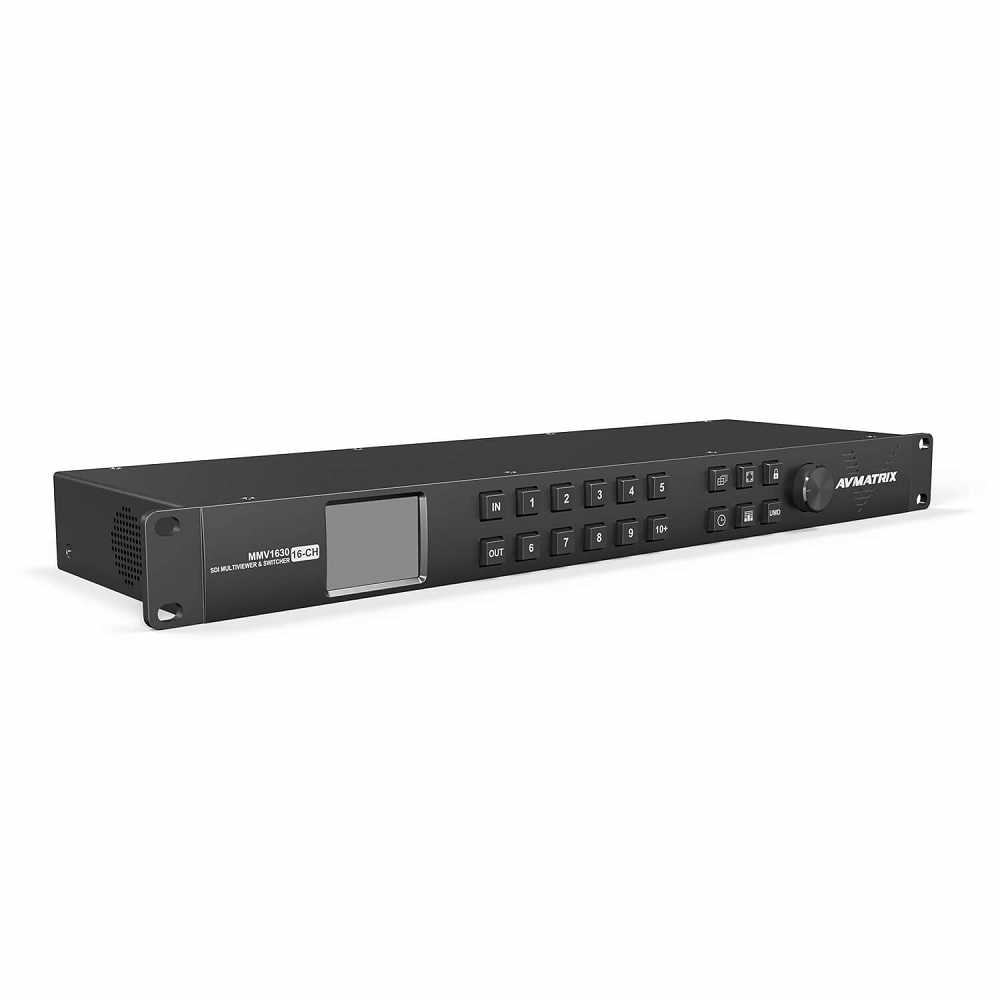

16 Inches SDI Multi-Viewer & SDI Matrix Switcher (Black)


Brand:
No Brand

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)

    Key Features
  • 2-in-1 Multiviewer and Switcher
  • 16 SDI Inputs
  • 16 SDI Loop Outputs
  • 2 x SDI & 1 x HDMI Multiview Outputs
  • Supports SD, HD, and 3G-SDI
  • Dual Redundant Power Supply
  • 20 Preset Layouts
  • Supports Video up to 1080p
  • Timecode and UMD Overlays
  • Signal Status and Audio Meter Overlays

    Specifications
  • Inputs: 16 x SD/HD/3G-SDI
  • Loop Outputs: 16 x SD/HD/3G-SDI

    Multi-View Outputs
    Scaling, with Audio:
  • 2 x SDI
  • 1 x HDMI

    Resolution
    SDI Input:
  • 1920 x 1080p at 60/59.94/50/30/29.97/25/24/23.98 Hz
  • 1920 x 1080PsF at 30/29.97/25/24/23.98 Hz
  • 1920 x 1080i at 60/59.94/50 Hz
  • 1280 x 720p at 60/59.94/50/30/29.97/25/24/23.98 Hz
  • 625i 50 PAL
  • 525i 59.94 NTSC

    SDI/HDMI Output:
  • 1080p at 60/50/30/25/24 Hz
  • 1080i at 60/50 Hz
  • 720p at 60/50 Hz
  • SDI Auto Switching: Auto Selects SD, HD, and 3G-SDI on Input
  • SDI Video Rates: SD/HD/3G-SDI
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M
  • Color Space: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4 (SDI Input)
  • YUV 4:2:2 (Multiview HDMI/SDI Output)

    Switcher
  • Inputs: 16 x SD/HD/3G-SDI/DVB-ASI
  • Outputs: 16 x SD/HD/3G-SDI/DVB-ASI
  • SDI Format Support: 2048 x 1080p at 30/29.97/25/24/23.98 Hz
  • 2048 x 1080PsF at 30/29.97/25/24/23.98 Hz
  • 1920 x 1080p at 60/59.94/50/30/29.97/25/24/23.98 Hz
  • 1920 x 1080PsF at 30/29.97/25/24/23.98 Hz
  • 1920 x 1080i at 60/59.94/50 Hz
  • 1280 x 720p at 60/59.94/50/30/29.97/25/24/23.98 Hz
  • 625i 50 PAL
  • 525i 59.94 NTSC
  • SDI Auto Switching: Auto Selects SD, HD, and 3G-SDI on Input
  • SDI Video Rates: SD/HD/3G-SDI
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 372M, SMPTE 424M, SMPTE 425M, DVB-ASI
  • Color Space: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4, XYZ 4:4:4

    General
  • Controls: Front-Panel Buttons and Knob
  • Connectors: LAN (Software and Update)
  • RS-422 (Reserve)
  • Display: 2.2" / 5.6 cm LCD Screen
  • Voltage: 12 to 20 VDC
  • Power Supply: PS-1, PS-2, Power Redundancy
  • Power Consumption: 36 W
  • Operating Temperature: 32 to 140°F / 0 to 60°C
  • Storage Temperature: -22 to 158°F / -30 to 70°C
  • Humidity: 0 to 90%
  • Rack Size: 1 RU
  • Dimensions: 17.4 x 1.7 x 5.3" / 44.4 x 4.4 x 13.4 cm
  • Weight: 4.4 lb / 2 kg

Features

Brand:
No Brand
Color:
Black
Conditions:
New
Warranty:
No Warranty
