Home Networking Power 10m (33ft) LC UPC to SC UPC Duplex OS2 Single Mode Industrial Armored TPU Fiber Optic Patch Cable- Black

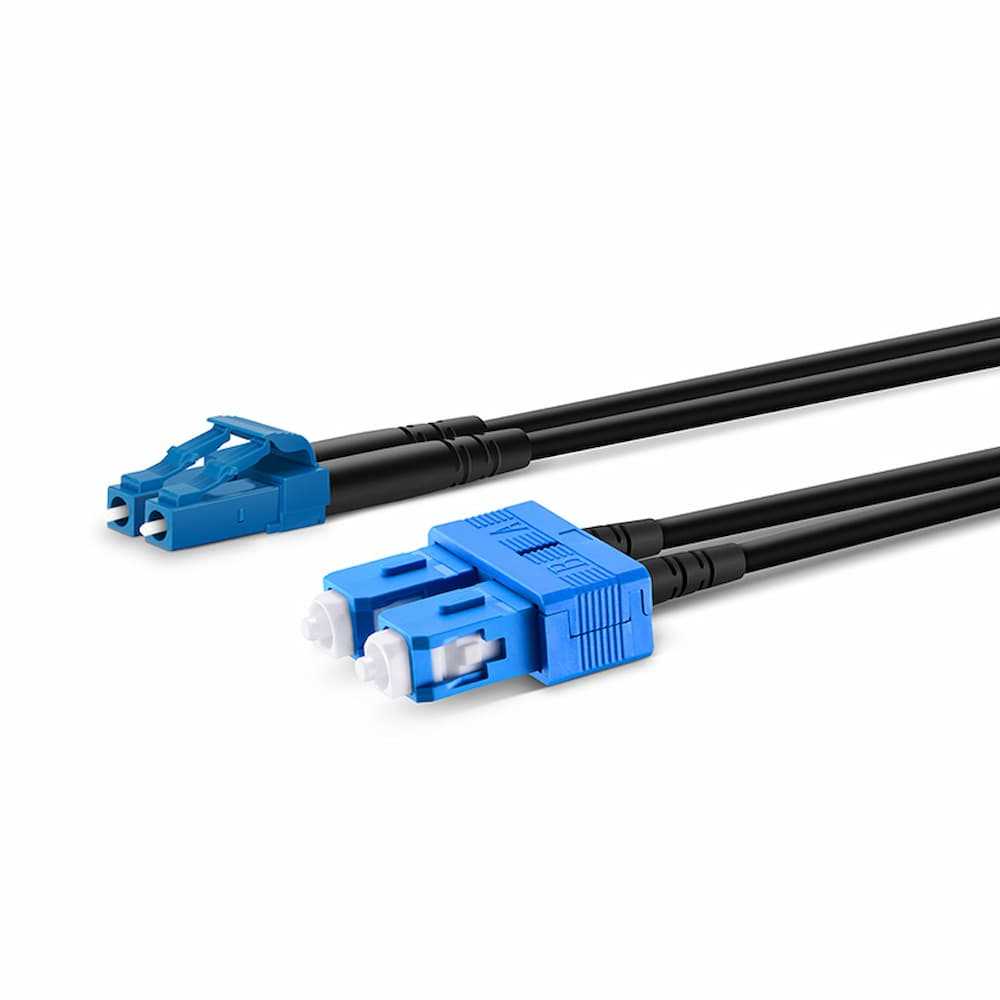

10m (33ft) LC UPC to SC UPC Duplex OS2 Single Mode Industrial Armored TPU Fiber Optic Patch Cable- Black


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
       Highlights:
  • TPU Jacket Features Water, Abrasion, Low-temperature Resistance
  • Helical Steel Armor Provides Additional Crush and Rodent Protection
  • For Harsh Environments Including Building Sites, Industrial Networks, Roadworks
  • Operating & Storage Temperature in the Range of -40 to 80°C
  • Max. 600N Tensile Strength and Max. 3000N Crush Strength
       Features:
  • Tough Armor & Durable TPU Protects Network Connection Further
  • Convenient Direct Burial & Durable Conduits Applications
  • Ideal for Various Harsh Installation Environments
      Specifications:
  • Connector Type: LC to SC
  • Polish Type: UPC to UPC
  • Fiber Mode: OS2 9/125µm
  • Fiber Count: Duplex
  • Fiber Grade: G.657.A2 (Compatible with G.652.D)
  • Minimum Bend Radius: 20/10D (Dynamic/Static)
  • Cable Diameter: 4.0mm
  • Cable Jacket: TPU (Thermoplastic Polyurethane)
  • Tensile Resistance: 200/600N (Long/Short Term)
  • Crush Strength: 2000/3000 N/100mm (Long/Short Term)
  • Wavelength: 1310/1550nm
  • Insertion Loss: =0.3dB
  • Return Loss: =50dB
  • Attenuation at 1310nm: 0.36 dB/km
  • Attenuation at 1550nm: 0.22 dB/km
  • Operating Temperature: -40 to 80°C (-40 to 176?)
  • Storage Temperature: -40 to 80°C (-40 to 176?)
  • Size: 10m (33ft)

Features

Brand:
No Brand
Color:
Black
Conditions:
New
Warranty:
1 Year
