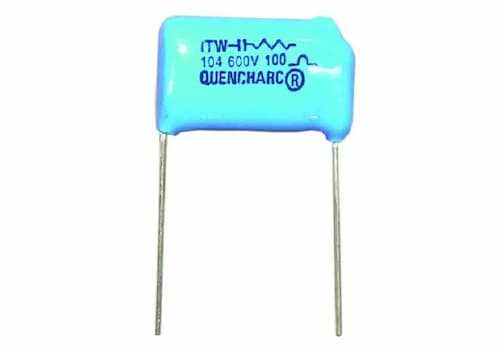

104M48QH39 ARC Suppression/ Snubber Network Electronic Component [Blue]


Brand:
No Brand

Specifications

   Product details:
  • Brand: No Brand
  • Warranty: No Warranty
   SPECIFICATIONS
  • Automotive: No
  • PPAP: No
  • Capacitance Value: 0.1uF
  • Capacitance Tolerance: 20%
  • Voltage: 1200VDC | 480VAC
  • Resistance Value (Ohm): 39
  • Resistance Tolerance: 10%
  • Power Rating (W): 2
  • Dielectric: PET
  • Number of Elements: 1R/1C
  • Termination Style: Radial
  • Number of Terminals: 2
  • Terminal Pitch (mm): 32.7
  • Size (mm): 40.6 X 16.3 X 26.4
  • Minimum Operating Temperature (°C): -55
  • Maximum Operating Temperature (°C): 85
  • Lead Diameter (mm): 0.8
  • Product Length (mm): 40.6(Max)
  • Product Depth (mm): 16.3(Max)
  • Product Height (mm): 26.4(Max)
  • Mounting: Through Hole

Features

Brand:
No Brand
Color:
Blue
Conditions:
New
Warranty:
No Warranty
